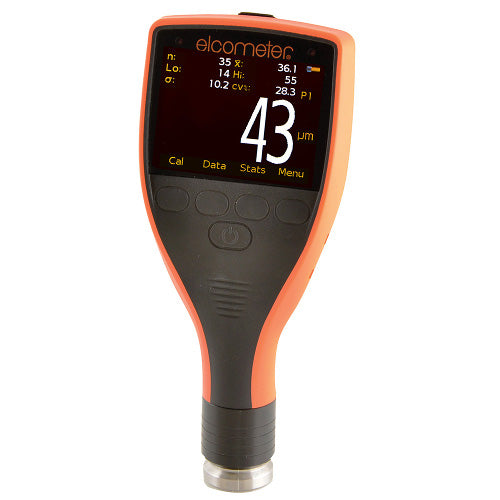

Elcometer 224: Revolutionary Integral Digital Surface Profile Gauge
Manufacturer: Elcometer
Part #: E224C-XI
Literature:
Description: Discover the Elcometer 224, the ultimate solution for surface profile measurement! This amazing gauge offers:
- • Latest Surface Profile Measuring Technology: Measure profiles on flat surfaces with ease and precision.
- • User-Friendly Design: Fast, accurate, and simple to use, available with or without memory and Bluetooth®.

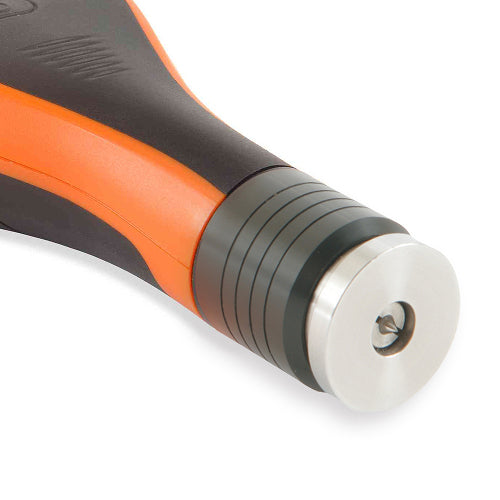

- • Single-Handed Operation: Ideal for one-handed use, thanks to the stable internal probe for consistent results.
- The Elcometer 224 Gauge also comes in a separate model with an extended probe, available HERE
Choose from two different models, B and T, each offering increasing functionality. From the entry-level Model B to the top-of-the-range Model T with memory, alpha-numeric batching, and Bluetooth® communication.
Specifications:
| Accuracy* | ±5% or ±0.2 mil (±5µm) |
| Resolution | 0.1 mil (1µm) |

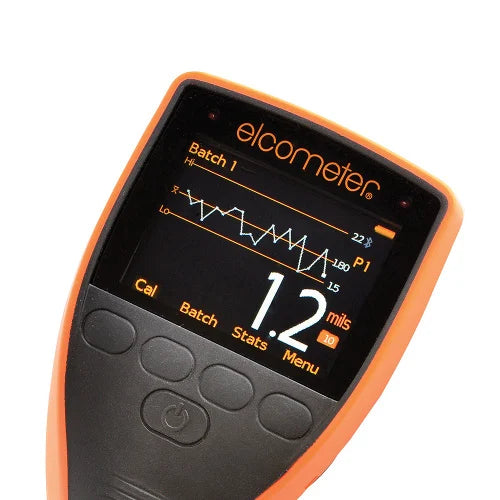

| Display information | 2.4' (6cm) QVGA colour TFT display, 320 x 240 pixels |
| Battery type | 2 x AA dry cell or rechargeable batteries |
| Battery life** | ~24 hours of continuous use at 1 reading per second |
| Gauge dimensions | 168 x 73 x 37mm (5.61 x 2.87 x 1.46') |
| Gauge weight | 218g (7.69oz) including supplied batteries |
| Operating temperature | -10 to 50°C (14 to 122°F) |
* Whichever is the greater.
**Using default settings & lithium batteries supplied, alkaline or rechargeable batteries may differ.
Parts and Accessories:
- (T22420053) - Replacement Probe Tips; Pack of 2 with Fixing Tool
- (T22420095) - Replacement Probe Tips; Pack of 5
- (T22419793) - Elcometer 224 Probe Tip Protection Cap
- (T22421882C) - Elcometer 224 Surface Profile Gauge - Certified Calibration Test Kit
- (T22420072) - Elcometer 224 Glass Zero Tile with Wallet
- (T99921325) - USB Cable
- (T99920130-1) - USB Bluetooth® Adaptor - for PC's without Bluetooth®
- (T99922341) - Self Adhesive Screen Protected (Pkg/10)
- (T45622494) - Bench Top Stand
The Elcometer 224 is great for professionals who need to measure surface profiles on flat surfaces. Whether you're in the construction, manufacturing, or quality control industry, this gauge is a must-have. It's easy to use, even with one hand, thanks to its stable internal probe. With a 24 - hour battery life, you can work continuously without worry. The gauge is 168 x 73 x 37mm in size and weighs 218g, making it portable and convenient to carry around. It can operate in temperatures from -10 to 50°C, so you can use it in various environments.
