Elcometer 224 Separate Digital Surface Profile Gauge - Get Yours Now!
*Elcometer 224 Separate gauges require a probe for use. If you do not have a compatible probe, be sure to add one to your shopping cart*
Manufacturer: Elcometer
Part #: E224C-XS
Literature:

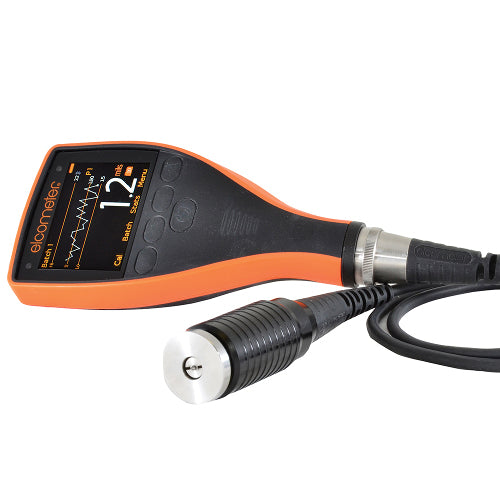

Description: The Elcometer 224 profile gauge with extended separate probe offers the latest surface profile measuring technology. Don't miss out on this amazing product!
- • Advanced Technology: The latest in surface profile measuring
- • Great Flexibility: Standard and armored probes for more measurement options
- • Long Battery Life: Up to 24 hours of continuous use
- The Elcometer 224 Gauge is also available in an integral model with built - in probe, available HERE
The Elcometer 224 is available in two different models: Model B and Model T. Each gauge provides the user with increasing functionality - from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha - numeric batching and Bluetooth® communication.
Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 508µm (20mils) and an Elcometer Test Certificate.
Probes:
- (T224C500US) - Elcometer 224 Flat Surface - Standard Probe
- (T224C500UARM) - Elcometer 224 Flat Surface - Armored Probe
- (T224C500UX) - Elcometer 224 Convex Surface - Standard Probe
- (T224C500UXARM) - Elcometer 224 Convex Surface - Armored Probe
Specifications:
| Accuracy* | ±5% or ±0.2 mil (±5µm) |
| Resolution | 0.1 mil (1µm) |
| Display information | 2.4' (6cm) QVGA colour TFT display, 320 x 240 pixels |
| Battery type | 2 x AA dry cell or rechargeable batteries |
| Battery life** | ~24 hours of continuous use at 1 reading per second |
| Gauge dimensions | 141 x 73 x 37mm (5.55 x 2.87 x 1.46') |
| Gauge weight | 161g (5.68oz) including supplied batteries |
| Operating temperature | -10 to 50°C (14 to 122°F) |
* Whichever is the greater.
**Using default settings & lithium batteries supplied, alkaline or rechargeable batteries may differ.
Parts and Accessories:
- (T22420053) - Replacement Probe Tips; Pack of 2 with Fixing Tool
- (T22420095) - Replacement Probe Tips; Pack of 5
- (T22419793) - Elcometer 224 Probe Tip Protection Cap
- (T22421882C) - Elcometer 224 Surface Profile Gauge - Certified Calibration Test Kit
- (T22420072) - Elcometer 224 Glass Zero Tile with Wallet
- (T99921325) - USB Cable
- (T99920130 - 1) - USB Bluetooth® Adaptor - for PC's without Bluetooth®
- (T99922341) - Self Adhesive Screen Protected (Pkg/10)
- (T45622371) - Bench Top Stand
The Elcometer 224 Separate Digital Surface Profile Gauge is perfect for professionals in industries like construction and manufacturing. You can use it to measure surface profiles on flat or convex surfaces with great accuracy. It's small, just 141 x 73 x 37mm and weighs 161g, so you can easily carry it around. With a battery life of up to 24 hours, you can use it for long - term projects without worrying about running out of power.
