Elcometer Hexagonal Wet Film Combs

Hexagonal Wet Film Combs - A Must-Have!

Manufacturer: Elcometer

Part #: K0003236M20X

Description: Discover these amazing hexagonal precision - formed stainless steel wet film combs! They are long - lasting and reusable, perfect for all your wet film measurement needs.

• Long - lasting and reusable, saving you money in the long run! • Offer either 24 or 36 measurement steps for increased accuracy. • Available in a wide range of thicknesses up to 3000µm (120mils), suitable for various applications.

Film Comb Ranges:	Values:

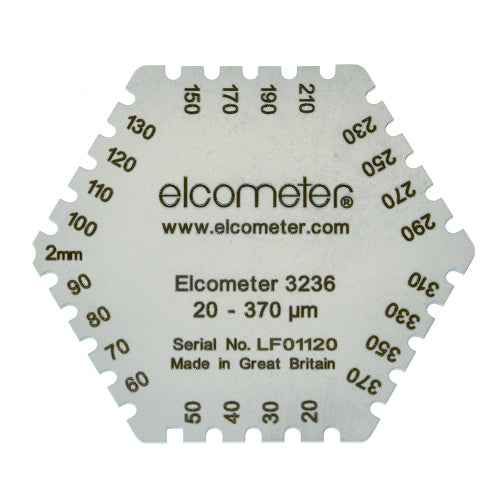

20 - 370µm	20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 150, 170, 190, 210, 230, 250, 270, 290, 310, 330, 350, 370µm
25 - 2000µm	25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900, 2000µm

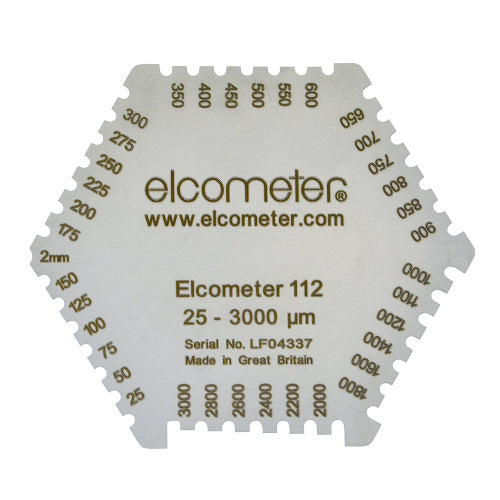

25 - 3000µm	25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000µm
0.5 - 15mils	0.5, 0.75, 1.0, 1.25, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 8, 9, 10, 11, 12, 13, 14, 15mils
1 - 80mils	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 55, 60, 65, 70, 75, 80mils
1 - 120mils	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, 120mils

Using a wet film comb:

Place a comb perpendicular to and touching the substrate. Hold the comb in position and wait a few seconds until the teeth are wet. Remove the comb from the film. The wet film thickness lies between the biggest value 'coated' or 'wet' tooth and the smallest value 'uncoated' or 'dry' tooth.

Literature:

• Data Sheet
• Manual

Packing list: Wet Film Comb, storage case, operating instructions. Get yours now and experience accurate wet film measurement!

These Elcometer wet film combs are great for anyone who needs to measure the thickness of wet paint or coatings. Whether you're a professional painter, a DIY enthusiast, or someone working in a quality control department, these combs will come in handy. They can be used in various settings like painting workshops, construction sites, or even in small home projects. The combs are made of stainless steel and come in different ranges of thickness measurements, up to 3000µm (120mils). And don't worry about carrying them around, as they come with a storage case. So, get ready to measure wet film thickness easily and accurately!
