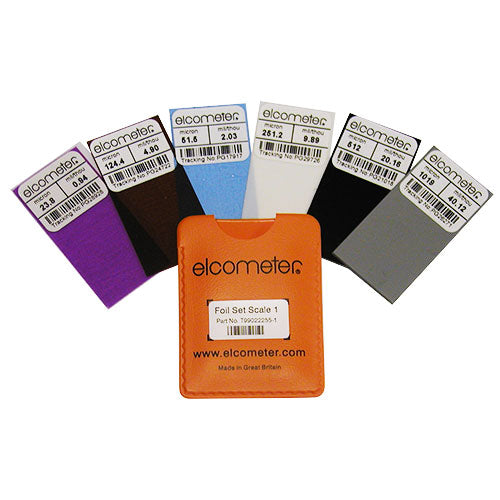

Elcometer Scale 1 Certified Precision Foil Set (T99022255-1C)
Manufacturer: Elcometer
Part #: T99022255-1C
Description: (1, 2, 5, 10, 20, 40 mils)
Calibration foils or 'shims' are the most convenient way to create a coating thickness standard. Ideal for adjusting coating thickness gauge calibration for maximum accuracy!
Core Selling Points:
- • Dual Metric and Imperial Values: Easily read measurements in both systems.
- • Unique Serial Numbers: Ensures full traceability for each foil.
- • High Precision: ±1% accuracy (±0.5µm for foils below 50µm).
Please note: The range and color of foils may vary from the picture. Check the technical specifications tab for exact details.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
Use this Elcometer Scale 1 Certified Precision Foil Set when you need to create a coating thickness standard on different substrate materials. It's great for professionals in the coating industry, like painters and quality control inspectors. The set comes with foils in various thicknesses (1, 2, 5, 10, 20, 40 mils). Each foil shows both metric and imperial values and has a unique serial number. The foils have high precision with an accuracy of ±1% (±0.5µm for foils below 50µm).
