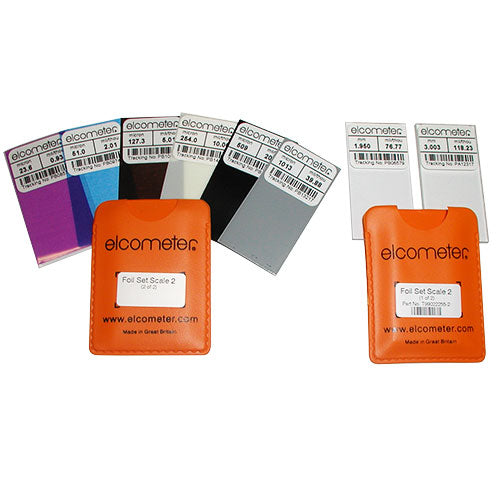

Scale 2 Certified Precision Foil Set - Must - Have for Coating Thickness Calibration (T99022255 - 2C)
Manufacturer: Elcometer
Part #: T99022255 - 2C
Description: (1, 2, 5, 10, 20, 40, 80, 120 mils)
Upgrade your coating thickness measurement accuracy today with these calibration foils! They're the easiest way to set a coating thickness standard on various substrates.
Core Selling Points:
- • Dual Metric and Imperial Values: No more unit conversion hassle
- • Traceable Serial Numbers: Ensure reliability and quality
- • High Precision: ±1% accuracy (±0.5µm for foils below 50µm)
Note: Foil range and color may vary from the picture. Check the technical specs for details.
Data Sheet
Additional Foil Sets:
| Scale | Un - Certified | Certified | Mils |
| Scale 1 | T99022255 - 1 | T99022255 - 1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255 - 2 | T99022255 - 2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255 - 3 | T99022255 - 3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255 - 4 | T99022255 - 4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255 - 5 | T99022255 - 5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255 - 6 | T99022255 - 6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255 - 7 | T99022255 - 7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255 - 8 | T99022255 - 8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 2 Certified Precision Foil Set is perfect for those who need to accurately measure coating thickness. Whether you're in a manufacturing plant, a quality control lab, or doing on - site inspections, these foils will come in handy. Targeted at professionals like engineers, technicians, and quality assurance specialists, they're easy to use. The foils are available in thicknesses from 12.5µm to 25mm (0.5 to 980 mils) and each foil has unique serial numbers for traceability. They display both metric and imperial values, making them suitable for a wide range of users.
