Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456

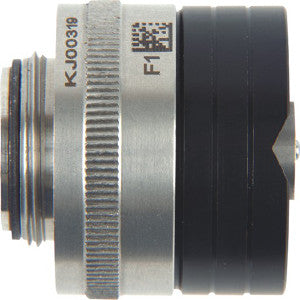

Elcometer 456 Ferrous Substrate Plug In Integral Probe (PINIP™) - Scale 1

Manufacturer: Elcometer

Part #: T456CF1P

Description: Transform your Elcometer 456 Separate Gauge now! This probe is a game - changer for accurate measurements.

• • Wide Measurement Range: Covers 0 - 60 mils (0 - 1500µm), perfect for various coating thickness needs.
• • High Accuracy: With ±1 - 3% or ±0.1 mil (±2.5µm) accuracy, you can trust every reading.
• • Versatile Resolution: Offers 0.01 mil (0 - 5 mils) and 0.1 mil (5 - 60 mils) resolution, adapting to different measurement scenarios.

Data Sheet

The Elcometer 456 Ferrous Substrate Plug In Integral Probe (PINIP™) - Scale 1 is ideal for those in the coating inspection industry, including contractors, quality control inspectors, and engineers. You can use it to measure the thickness of coatings on ferrous substrates in factories, construction sites, or automotive workshops. It attaches to a separate gauge, giving it the performance of an integral probe gauge. The probe has a range from 0 to 60 mils (0 - 1500µm), an accuracy of ±1 - 3% or ±0.1 mil (±2.5µm), and different resolutions depending on the measurement range. It can work on surfaces with a minimum convex surface radius of 4mm (0.16'), a minimum concave surface radius of 60mm (2.36'), and requires a minimum headroom of 170mm (6.69') and a minimum sample diameter of 4mm (0.16').
