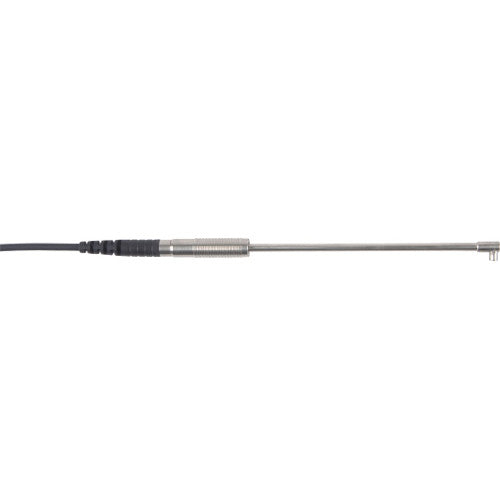

Elcometer 456 Mini 90° Ferrous Substrate Probe - Unleash Precision Measuring!
Manufacturer: Elcometer
Part #: T456CFM3R90D
Description: Diameter 3mm (0.12'); Minimum Convex Surface Diameter 1.9mm (0.07'); Minimum Concave Surface Radius 6.5mm (0.26').
Discover the all - new Elcometer 456 Mini 90 Degree Ferrous Probe, perfectly paired with our Elcometer 456 Separate Gauges! Get ready to measure like a pro!
- • Ideal for Hard - to - Reach Areas: Measure the walls of pipes or boreholes with ease.
- • High Precision: Accuracy of ±1 - 3% or ±0.1 mil (±2.5µm).
- • Compact Design: Mini measuring head with right - angled probe for tight spaces.
Specifications:
- Length 300mm (11.8')
- Range: 0 - 20 mils (0 - 500µm)
- Accuracy*: ±1 - 3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1 mils: 5 - 20 mils (0.1µm: 0 - 100µm; 1µm: 100 - 500µm)
- Minimum convex surface radius - 1.9mm (0.07')
- Minimum concave surface radius - 6.5mm (0.26')
- Minimum headroom - 16mm (0.63') Width: 7mm (0.28')
- Minimum sample diameter: 3mm (0.12')
*Whichever is greater
Data Sheet
The Elcometer 456 Mini 90° Ferrous Substrate Probe is a must - have for professionals in industries like plumbing and engineering. Use it to measure the coating thickness on the walls of pipes or boreholes where regular probes can't reach. It's 300mm long and has a mini measuring head, making it great for tight spaces. With high accuracy and a wide measuring range, this probe will help you get reliable results every time.
