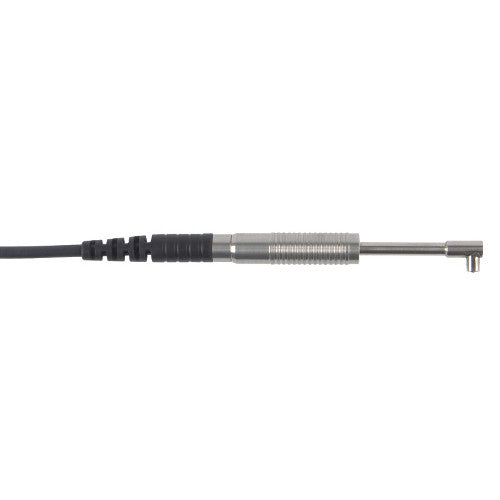

Elcometer 456 Mini 90° Non-Ferrous Substrate Probe - Your Ideal Solution!
Manufacturer: Elcometer
Part #: T456CNM3R90A
Description: Discover the amazing Elcometer 456 Mini 90 Degree Non-Ferrous Probe that works perfectly with our Elcometer 456 Separate Gauges. Get yours now!
• Ideal for edges, narrow pipes and small surface areas
• High accuracy: ±1 - 3% or ±0.1 mil (±2.5µm)
• Wide measurement range: 0 - 20 mils (0 - 500µm)
Specifications:
- Length 45mm
- Range: 0 - 20 mils (0 - 500µm)
- Accuracy*: ±1 - 3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1 mils: 5 - 20 mils (0.1µm: 0 - 100µm; 1µm: 100 - 500µm)
- Minimum convex surface radius - 6mm (0.24')
- Minimum concave surface radius - 8.5mm (0.33')
- Minimum headroom - 16mm (0.63') Width: 7mm (0.28')
- Minimum sample diameter: 4mm (0.16')
*Whichever is greater
Data Sheet
The Elcometer 456 Mini 90° Non-Ferrous Substrate Probe is great for measuring coatings on edges, narrow pipes and small surfaces. It's perfect for professionals in industries like manufacturing and quality control. This probe is 45mm long, with a width of 7mm. It can measure from 0 to 20 mils (0 - 500µm) with high accuracy.
