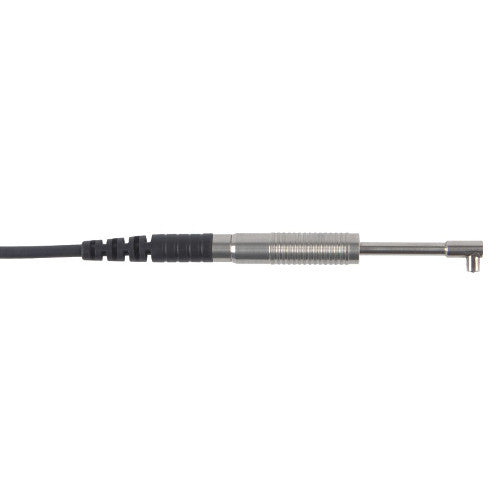

Elcometer 456 Mini 90° Non-Ferrous Substrate Probe - 400mm Scale 1
Manufacturer: Elcometer
Part #: T456CNM5R90E
Description: Discover this amazing probe that's perfect for your measurement needs! • Works with Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges • Ideal for hard-to-reach areas like I beam edges and pipe walls • Offers high accuracy (±1 - 3% or ±0.1 mil) and wide range (0 - 60 mils).
Specifications:
- 400mm
- Range: 0 - 60 mils (0 - 1500µm)
- Accuracy: ±1 - 3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1mil: 5 - 20 mils (0.1µm: 0 - 100µm; 1µm: 100 - 500µm)
- Minimum convex surface radius 10.0mm (0.39')
- Minimum concave surface radius 8.5mm (0.33')
- Minimum headroom 16mm (0.63') - Width: 7mm (0.28')
- Minimum sample diameter 4mm (0.16')
Data Sheet
This Elcometer 456 Mini 90° Non-Ferrous Substrate Probe is great for professionals who need to measure in hard-to-reach spots. It's useful for measuring I beam edges, walls of pipes or boreholes. The probe is 400mm long and has a measurement range of 0 - 60 mils. It offers good accuracy and resolution for precise measurements.
