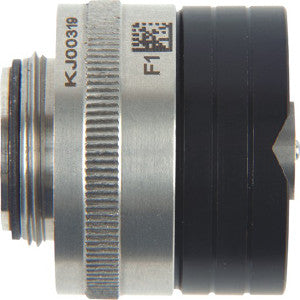

Elcometer 456 Non-Ferrous Substrate Plug In Integral Probe (PINIP™) - Scale 1
Manufacturer: Elcometer
Part #: T456CN1P
Description: This amazing probe is a must - have! • Works with Non - Ferrous or Dual FNF Elcometer 456 Separate Gauges. • Transforms a separate gauge into an integral probe gauge for better performance. • Offers a wide measurement range of 0 - 60 mils (0 - 1500µm).
Specifications:
- Range: 0 - 60 mils (0 - 1500µm)
- Accuracy*: ±1 - 3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1mil: 5 - 60 mils (0.1µm: 0 - 100µm; 1µm: 100 - 1500µm)
- Minimum convex surface radius 10mm (0.39')
- Minimum concave surface radius 50mm (1.97')
- Minimum headroom 180mm (7.09')
- Minimum sample diameter 4mm (0.16')
Data Sheet
The Elcometer 456 Non - Ferrous Substrate Plug In Integral Probe (PINIP™) is perfect for professionals in industries like metalworking and coatings. It's used when you need to measure the thickness of non - ferrous substrates accurately. Whether you're in a workshop or on - site, this probe can handle the job. It has a measurement range from 0 to 60 mils (0 to 1500µm). The minimum convex surface radius it can work with is 10mm (0.39'), and the minimum concave surface radius is 50mm (1.97'). It also needs a minimum headroom of 180mm (7.09') and can measure samples with a minimum diameter of 4mm (0.16').
