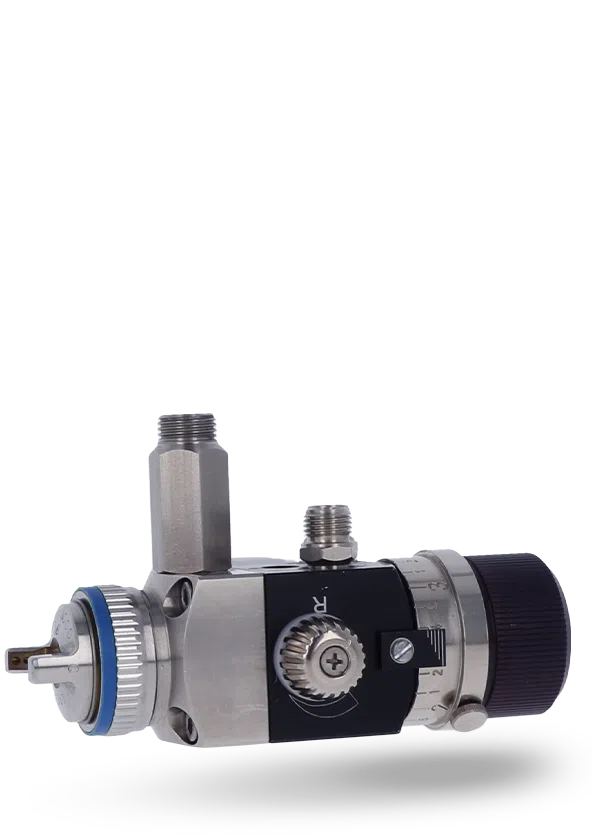

SATAjet 5000 LAB; RP - Unleash Your Paint Lab Potential!
Manufacturer: SATA
Part #: 224XXX
Description: Ideal for professional color tone and quality check in the paint lab. This internally controlled automatic gun is designed for use with flow cups and features scalable setting elements for precise fan dimension and material feed reproduction.
Product Benefits
- • Conduct paint development, batch control, or colour tests with common SATAjet nozzle systems
- • Achieve consistent and reproducible application of small quantities under laboratory conditions
- • Enjoy a finely adjusted nozzle system with test report and reference spray pattern
RP: Extra Fast - RP spray guns offer maximum working speed with optimized high-pressure technology and low overspray.
Parts and Accessories:
| Part No. | Description |
| 1503 | Countersunk Screw M4 x 8 |
| 1594 | Teflon Seal |
| 1826 | Drip-Proof Device |
| 3418 | Washer, 3.7 |
| 3574 | Spring, Needle Packing |
| 3939 | Spindle Cpl for LP 90 |
| 11544 | Spring, Needle |
| 19208 | LP90 Regulation Cap |
| 20057 | Control Screw |
| 23911 | Disc 3.2 DIN |
| 23960 | Countersunk Screw |
| 35873 | Scale |
| 48231 | Scale Ring |
| 49379 | Gravity Cup |
| 49395 | Gravity Cup Lid |
| 49957 | Scale Plate |
| 53819 | Compression Piece |
| 64071 | Seal Retainer |
| 64105 | Control Piston |
| 64147 | Washer |
| 64154 | Bushing |
| 64709 | Sleeve |
| 64766 | Spacer |
| 64808 | Spring, Compression |
| 64857 | Seal Retainer, Complete |
| 64873 | End Cap, Complete |
| 69997 | Compression Spring |
| 70789 | O-Ring, 5x2 |
| 73510 | Spacer |
| 73528 | Blocking Plate |
| 73536 | Control Knob |
| 73544 | Intermediate Washer |
| 73619 | Reduction Nipple |
| 73627 | Index Ring |
| 73650 | Threaded Pin |
| 73783 | Hex. Socket-Head Screw |
| 74179 | Intermediate Piece LP90 |
| 74690 | Cylindrical Screw |
| 80598 | Seal Retainer |
| 97824 | Air Distribution Ring |
| 118141 | Nozzle Head Cpl |
| 133934 | Packings, 3 pk |
| 133983 | Air Connection |
| 140574 | Control Knob and Screw |
148635
| Nozzle Head, Cpl |
| 170787 | Seal Retainer |
Literature:
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
The SATAjet 5000 LAB; RP is a must-have for paint lab professionals. It's perfect for conducting color tone and quality checks, paint development, batch control, and color tests. With its internally controlled automatic design and compatibility with flow cups, it offers precise and reproducible results. Whether you're a small paint lab or a large-scale production facility, this spray gun will meet your needs. The RP version provides extra-fast performance with optimized high-pressure technology and low overspray, ensuring maximum efficiency. Although specific dimensions and weight are not provided, you can expect a well-built and reliable tool from SATA.
