SATAjet LP-S 2000 RP: Revolutionize Your Painting Process!
Manufacturer: SATA
Part #: 929XX

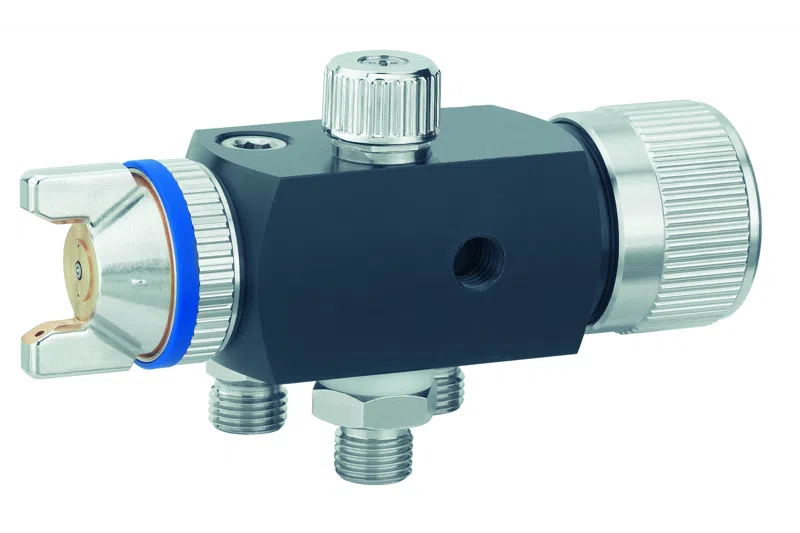

Description: An automatic, externally controlled marking gun designed for automatic painting machines and robots. With external control, it enables high cycle frequencies.
Top 3 Core Benefits
- • Easy Integration: Can be integrated into existing control and application systems
- • Precise Regulation: Stepless regulation of the fan geometry via round and flat fan regulation directly at the gun
- • Low Maintenance: Self - adjusting sealing elements ensure process reliability and low maintenance requirements
RP: Extra Fast - RP spray guns offer maximum working speed with optimized high - pressure technology and low overspray.
| Technical Data: | RP |
Air Consumption:
| 7 - 9 CFM
|
| Air Pressure Min. | 45psi
|
| Air Pressure Max. | 150 psi |
| Fluid Pressure Max. | 75 psi |
Parts and Accessories:
| Part No. | Description |
| 1503 | Countersunk Screw |
| 1933 | Teflon Sealing |
| 3418 | Washer 3,7 DIN 125, Brass |
| 3574 | Compression Spring |
| 3582 | Packing Screw |
| 3657 | Control Knob |
| 3939 | Spinde Cpl |
| 20297 | Compression Spring |
| 22418 | Teflon Sleeve |
| 24349 | Backing Plate |
| 40253 | Regulation Cap LP - S |
| 40832 | Repair Kit |
| 45385 | Hex. Nut M9X1 |
| 57976 | Distance Sleeve |
| 62513 | Air Distribution Ring |
| 64212 | Mounting Post |
| 64766 | Spacer Ring |
| 67116 | Locking Screw |
| 69724 | Closing Screw |
| 133934 | Packings |
| 134593 | Air Dist. Rings |
| 144618 | Fixing Bolt |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
The SATAjet LP - S 2000 RP is a great tool for industrial painting. It's perfect for those who work with automatic painting machines and robots, like factory workers and technicians. You can use it in high - cycle frequency marking tasks and processes. This gun has an air consumption of 7 - 9 CFM, a minimum air pressure of 45 psi, a maximum air pressure of 150 psi, and a maximum fluid pressure of 75 psi.
