Straight Ferrous Substrate Probe | Scale 6 | Elcometer 456

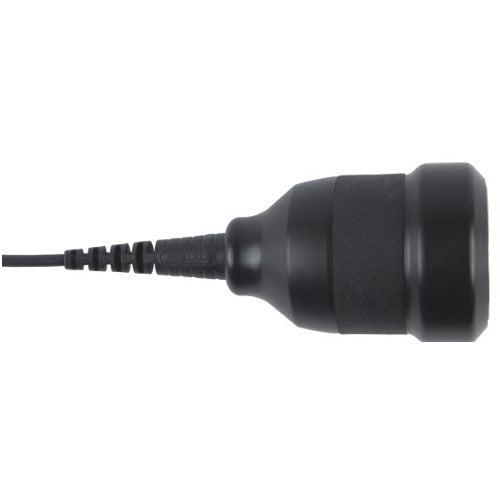

Elcometer 456 Straight Ferrous Substrate Probe - Scale 6

Manufacturer: Elcometer

Part #: T456CF6S

Description: Discover the power of this amazing probe! It's designed to work seamlessly with our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

• • Ideal for thick coatings: Perfect for measuring thick coatings on ferrous metal substrates like pipe wrap, fireproofing, and polyurea.
• • Wide measurement range: With a range of F - 0 - 980 mils (0 - 25mm) / N - 0 - 1200 mils (0 - 30mm), it can handle various measurement needs.
• • High accuracy: Enjoy an accuracy of ±1 - 3% or ±4.0 mil (±100µm) for reliable results.

Data Sheet

This Elcometer 456 Straight Ferrous Substrate Probe is great for those who need to measure thick coatings on ferrous metal substrates. It's suitable for professionals in industries like pipeline maintenance, fireproofing installation, and polyurea application. You can use it to measure coatings on pipes, fireproofing materials, and polyurea surfaces. It has a wide measurement range, high accuracy, and specific requirements for surface radius, headroom, and sample diameter. The range is F - 0 - 980 mils (0 - 25mm) / N - 0 - 1200 mils (0 - 30mm), with an accuracy of ±1 - 3% or ±4.0 mil (±100µm). The minimum convex surface radius is 35mm (1.40'), the minimum concave surface radius is 170mm (6.70'), the minimum headroom is 150mm (5.90'), and the minimum sample diameter is 51 x 51mm² (2 x 2 sq. inch).
