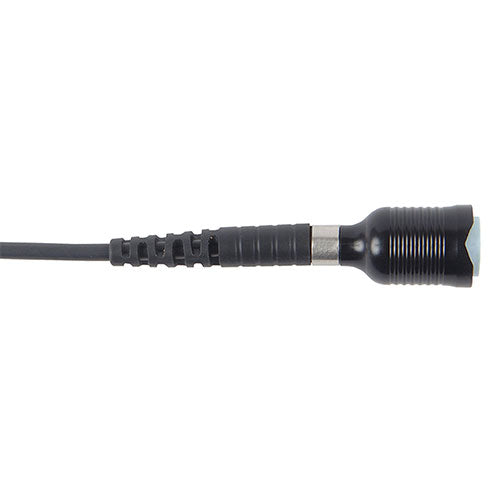

Elcometer 456 Straight Non-Ferrous Substrate Probe - Scale 2: Precision at Your Fingertips!
Manufacturer: Elcometer
Part #: T456CN2S
Description: This amazing probe is designed to work seamlessly with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.
• High Compatibility: Works with Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges
• Enhanced Performance: Switch to Scale 1 mode for higher resolution and accuracy on thin coatings
• Wide Range: Measures from 0 - 200 mils (0 - 5mm)
Specifications:
- Range: 0 - 200 mils (0 - 5mm)
- Accuracy*: ±1 - 3% or ±1.0 mil (±20µm)
- Resolution: 0.1 mil: 0 - 50 mils; 1 mil: 50 - 200 mils (1µm: 0 - 1mm; 10µm: 1 - 5mm)
- Minimum convex surface radius 100mm (3.97')
- Minimum concave surface radius 150mm (5.90')
- Minimum headroom 88mm (3.46')
- Minimum sample diameter: 14mm (0.55')
Data Sheet
The Elcometer 456 Straight Non-Ferrous Substrate Probe - Scale 2 is great for professionals in the coating inspection field. It can be used in various industrial settings to measure the thickness of coatings on non - ferrous substrates. Whether you're in a factory or a construction site, this probe will help you get accurate measurements. It's suitable for those who need high - precision measurement tools. The probe has a measuring range from 0 to 200 mils (0 to 5mm), with specific requirements for surface radii, headroom, and sample diameter as mentioned in the specs.
