Scale 3 Certified Precision Foil Set (T99022255-3C)
Manufacturer: Elcometer
Part #: T99022255-3C
Description: (10, 20, 40, 80, 160, 310 MILS)
Calibration foils or 'shims' are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Top 3 Selling Points:
- • Dual Metric and Imperial Values: Easily read measurements in both systems on each foil!
- • High Precision: With ±1% accuracy (±0.5µm for foils below 50µm), get reliable results every time.
- • Traceable: Each foil has a unique serial number for full traceability.

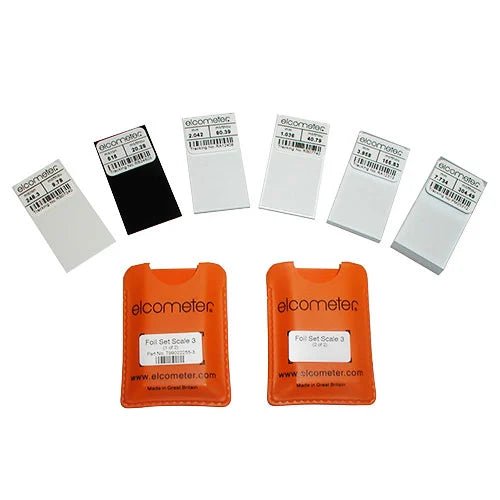

Please note: The range and color of foils may be different than what is pictured. Refer to the technical specifications tab to be sure of the range for each foil set.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 3 Certified Precision Foil Set is a must - have for anyone working with coating thickness measurement. Whether you're in a factory, a lab, or on a construction site, these foils will help you create a reliable coating thickness standard. Ideal for technicians, quality control experts, and engineers who need accurate measurements. The set comes with foils in thicknesses of 10, 20, 40, 80, 160, and 310 MILS. Each foil shows both metric and imperial values, and has a unique serial number for easy traceability. They offer high precision with an accuracy of ±1% (±0.5µm for foils below 50µm). Although the exact range and color of the foils might vary from the picture, you can check the technical details for exact info.
