Scale 5 Certified Precision Foil Set - Revolutionize Your Coating Thickness Calibration! (T99022255-5C)
Manufacturer: Elcometer
Part #: T99022255-5C
Description: (0.5, 1, 2, 5, 10, 20 MILS)
Calibration foils or 'shims' are the most convenient way to create a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Core Selling Points:
- • Dual Metric and Imperial Values: Easily read measurements in both systems on each foil.
- • Traceable Precision: Each foil has a unique serial number for full traceability.
- • High - Accuracy Foils: Precision foils offer ±1% accuracy, with foils below 50µm (2.0mils) at ±0.5µm (0.02mil).

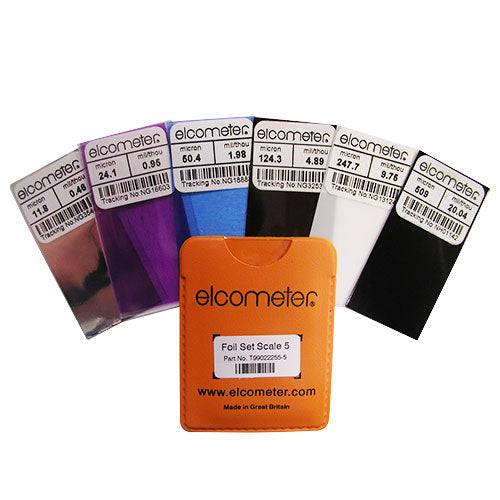

Please note: The range and color of foils may be different than what is pictured. Refer to the technical specifications tab to be sure of the range for each foil set.
Data Sheet
Additional Foil Sets:
| Scale | Un - Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 5 Certified Precision Foil Set is perfect for anyone who needs to accurately measure coating thickness. It's great for quality control specialists in manufacturing plants, technicians in paint shops, and engineers in the automotive and aerospace industries. You can use these foils in various scenarios, like calibrating coating thickness gauges before a big project or checking the accuracy of your measurements during production. The foils come in different thicknesses from 0.5 to 20 mils, and they show both metric and imperial values. Each foil has a unique serial number so you can always trace it back. And they're very accurate, with most having an accuracy of ±1%, and those below 50µm (2.0mils) at ±0.5µm (0.02mil).
