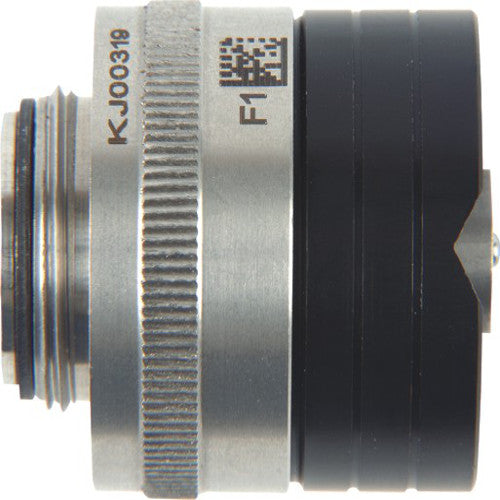

Elcometer 456 Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 3
Manufacturer: Elcometer
Part #: T456CF3P
Description: This amazing probe is a must - have! • Works with Ferrous or Dual FNF Elcometer 456 Separate Gauges • Comes with an Elcometer test certificate and calibration foils • Offers high - accuracy measurement from 0 - 500 mils (0 - 13mm)
- Range: 0 - 500 mils (0 - 13mm)
- Accuracy: ±1 - 3% or ±2.0 mil (±50µm)
- Resolution: 0.1 mil: 0 - 100 mils; 1 mil: 100 - 500 mils (1µm: 0 - 2mm; 10µm: 2 - 13mm)
- Minimum convex surface radius - 15mm (0.59')
- Minimum concave surface radius - 45mm (1.77')
- Minimum headroom - 184mm (7.24')
- Minimum sample diameter: - 14mm (0.55')
Data Sheet
This Elcometer 456 Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 3 is great for industries where coating thickness measurement on ferrous substrates is needed, like automotive and manufacturing. It's for technicians, quality control specialists, and engineers. The probe has a measurement range from 0 - 500 mils (0 - 13mm), with an accuracy of ±1 - 3% or ±2.0 mil (±50µm). It needs a minimum convex surface radius of 15mm, a minimum concave surface radius of 45mm, and a minimum headroom of 184mm. The minimum sample diameter it can work with is 14mm.
