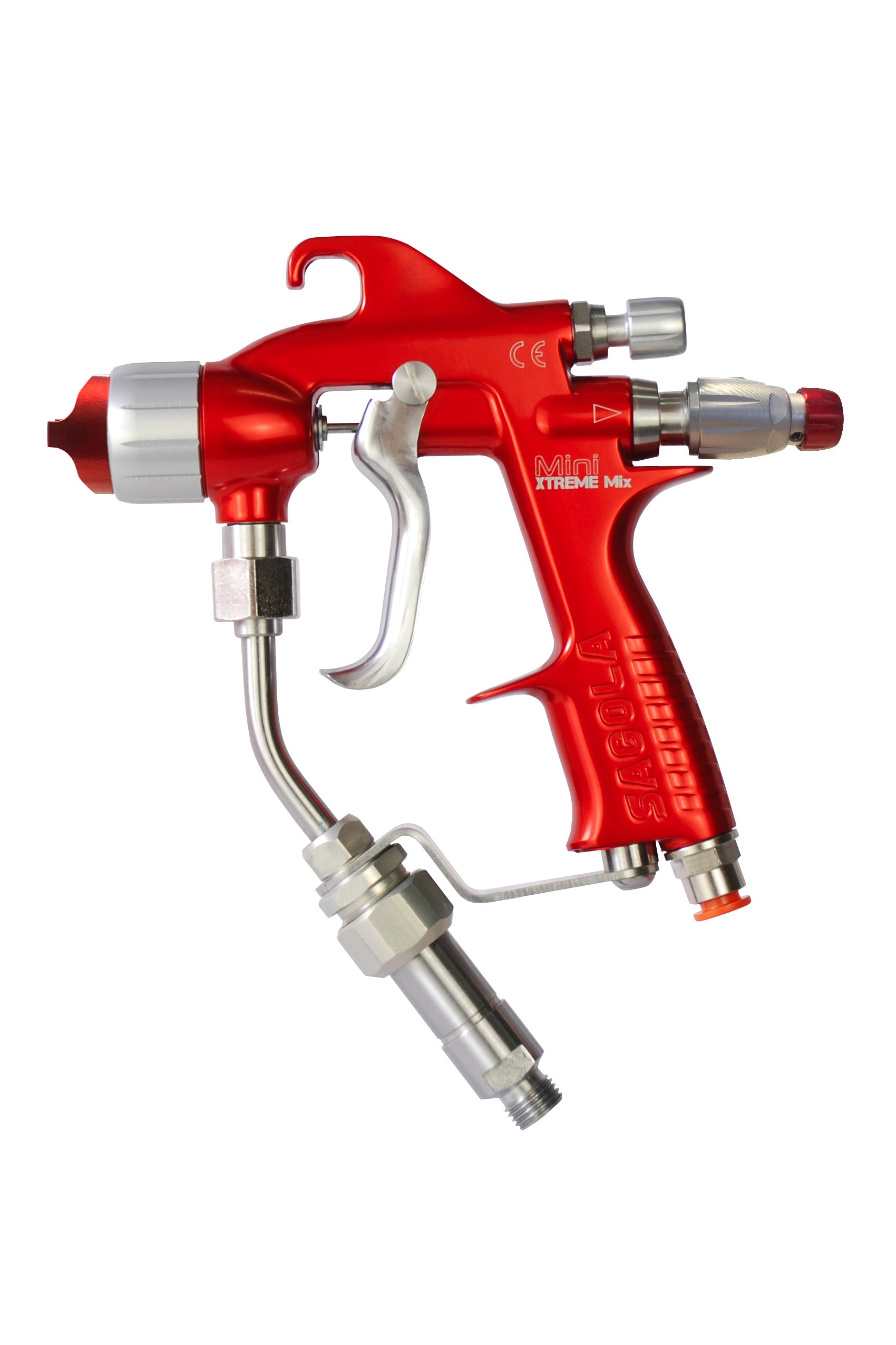

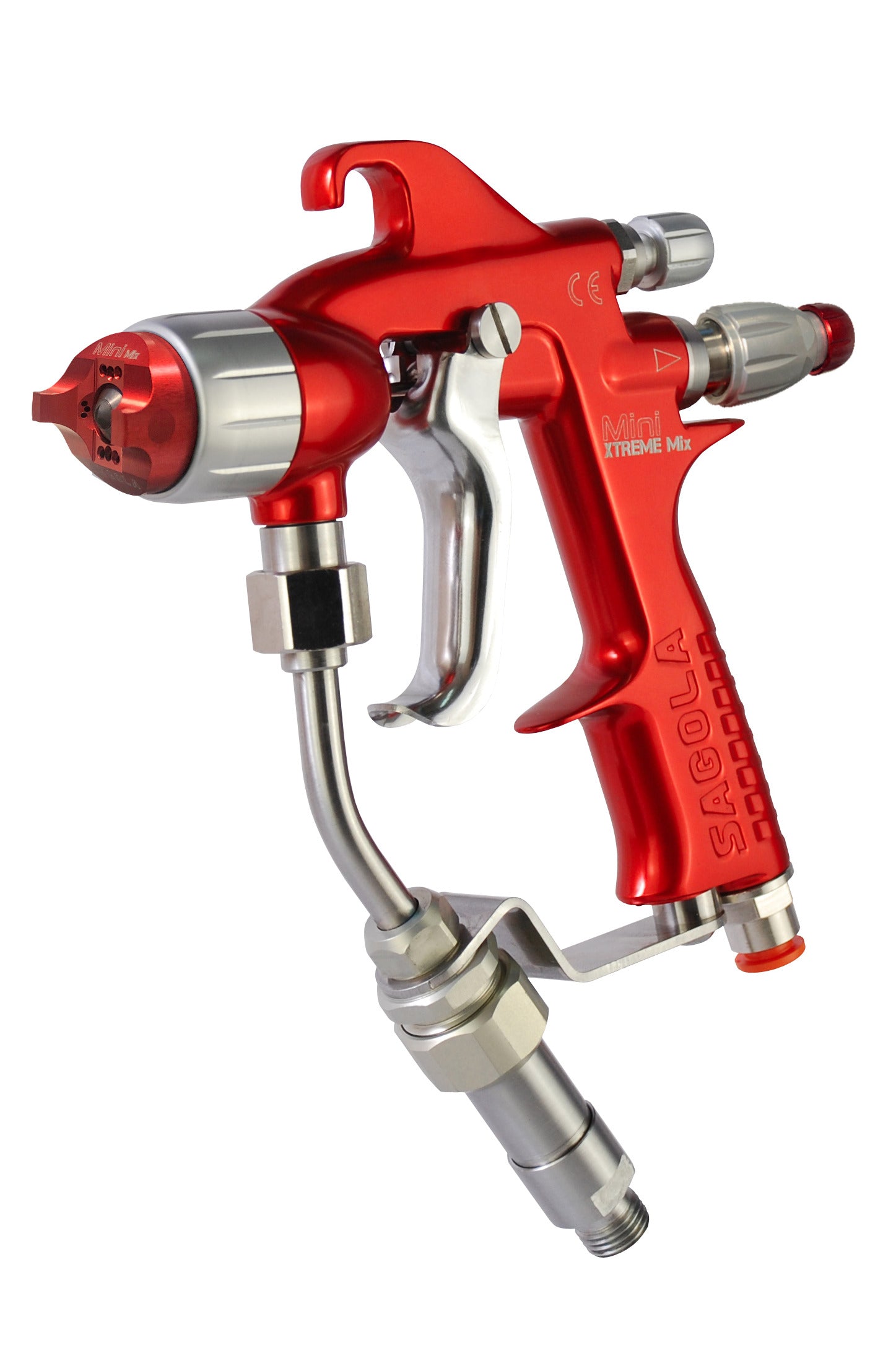

Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun

Sagola Mini Xtreme Mix: The Ultimate Air Assisted Airless Spray Gun

Manufacturer: Sagola

Part #: PG3513020X

Description: Discover the revolutionary Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun! This masterpiece of design is one of the smallest and most ergonomic mix guns on the market. Ideal for complex - shaped part painting, it offers an unbeatable combination of speed, high transfer (above 80%), and XTREME aerographic system quality finishes.

• • Precise Fan Control: Achieve maximum precision with full regulation control of the fan.
• • Versatile Paint Compatibility: Designed for UV and waterborne paints.
• • Durable Construction: High - resistance anodized forged aluminium body and tungsten carbide nozzle and needle fittings.

Scope of Delivery:

• Sagola Mini Xtreme Mix Aircap
• 100 Mesh Product Filter (x1)
• Yellow Spring (Max WP 120 bar / 1740 psi)
• Red Spring (Max WP 200 bar / 2900 psi)
• Cleaning Brush, Wrench
• Tungsten Carbide Needle & Nozzle Kit
• Air Assisted Airless Spray Tip (x1)

Specifications:

Compatible with Elcometer Baltic & Riga Air Assisted Airless Spray Pumps

Air inlet:	8mm Quick Connector
Product inlet:	1/4' Swivel Coupling
Max. working pressure with yellow spring:	120 bar
Max. working pressure with red spring:	200 bar
Product filter:	100 mesh
Air consumption:	150 L/min
Weight:	1.2lbs (555g)

Literature:

• Manual

Parts and Accessories:

• PT56418053 Spray Gun Product Filter - 100 Mesh, Pack of 10
• PT56418054 Spray Gun Product Filter - 60 Mesh, Pack of 10

• PT56410110 Spray Gun Product Filter Holder

• PT56418057 Spray Gun Product Filter Kit: includes Product Filter Holder, 100 Mesh Product Filter (x1) & 60 Mesh Product Filter (x1)



The Sagola Mini Xtreme Mix Air Assisted Airless Spray Gun is perfect for those working in the furniture sector, industry, and industrial bodyshops. It's great for painting parts with complex shapes. Weighing just 1.2 lbs (555g), it's easy to handle. The gun is compatible with Elcometer Baltic & Riga Air Assisted Airless Spray Pumps, and it has a 100 - mesh product filter. It can work at a maximum pressure of 120 bar with the yellow spring and 200 bar with the red spring, and has an air consumption of 150 L/min.
