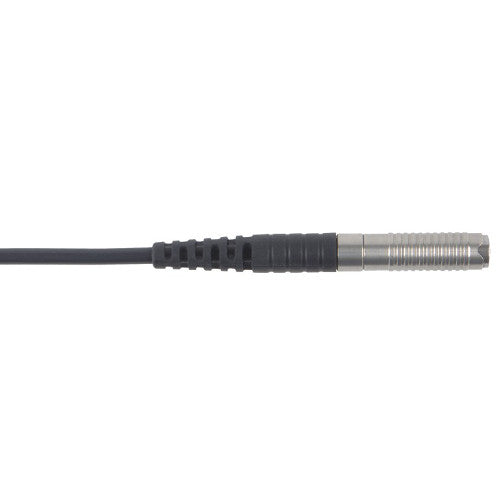

Elcometer 456 Straight Ferrous Substrate Probe - Scale 1: The Ultimate Coating Measurement Solution
Manufacturer: Elcometer
Part #: T456CF1S
Description: Discover the Elcometer 456 Straight Ferrous Substrate Probe! • Works with Ferrous or Dual FNF Elcometer 456 Separate Gauges • Measures coating on flat and curved surfaces • Comes with Test Certificate and calibration foils
- Range: 0 - 60 mils (0 - 1500µm)
- Accuracy*: ±1 - 3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1mil: 5 - 60 mils (0.1µm: 0 - 100µm; 1µm: 100 - 1500µm)
- Minimum convex surface radius 4mm (0.16')
- Minimum concave surface radius 25mm (0.98')
- Minimum headroom 85mm (3.35')
- Minimum sample diameter 4mm (0.16')
Data Sheet
The Elcometer 456 Straight Ferrous Substrate Probe is perfect for professionals who need to measure coating thickness on ferrous materials. Whether you're working on flat or curved surfaces, this probe can handle it. It has a measurement range of 0 - 60 mils (0 - 1500µm) and offers high accuracy. It's suitable for industries like manufacturing, automotive, and construction. The probe has a minimum convex surface radius of 4mm and a minimum concave surface radius of 25mm, allowing it to be used on a variety of shapes. And with its included Test Certificate and calibration foils, you can trust the results every time.
