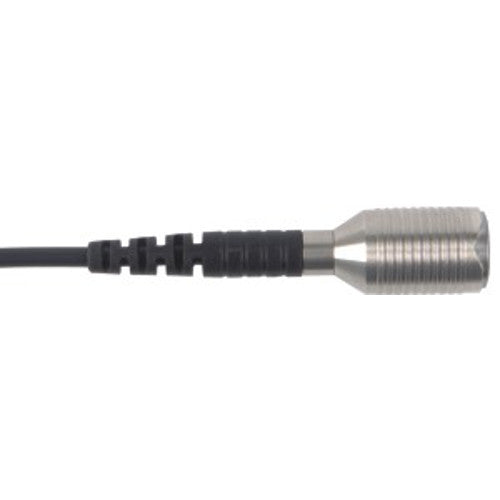

Elcometer 456 Straight Ferrous Substrate Probe - Scale 3: Unleash Precision!
Manufacturer: Elcometer
Part #: T456CF3S
Description: This probe is a must - have for anyone working with Ferrous or Dual FNF Elcometer 456 Separate Gauges. Don't miss out on its amazing features!
Comes with an Elcometer test certificate and a set of calibration foils. Foil sets match the scale range.
- • Wide Range: Measures from 0 - 500 mils (0 - 13mm)
- • High Accuracy: ±1 - 3% or ±2.0 mil (±50µm)
- • Fine Resolution: 0.1 mil from 0 - 100 mils; 1 mil from 100 - 500 mils (1µm: 0 - 2mm; 10µm: 2 - 13mm)
Data Sheet
The Elcometer 456 Straight Ferrous Substrate Probe is great for professionals in industries like metalworking and manufacturing. It's used to measure coating thickness on ferrous substrates. Whether you're in a factory or a lab, this probe will come in handy. It has a wide measuring range from 0 to 500 mils (0 - 13mm). You need a minimum convex surface radius of 15mm, a minimum concave surface radius of 40mm, and a minimum headroom of 102mm to use it properly. The minimum sample diameter should be 14mm. This probe is a reliable tool for getting accurate coating thickness measurements.
