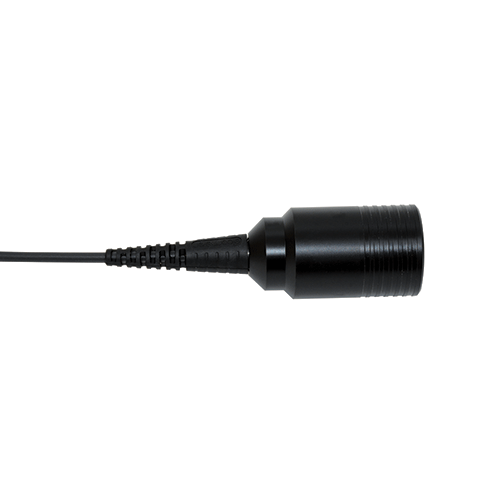

Elcometer 456 Scale 3 Straight Non-Ferrous Substrate Probe - Grab Yours Now!
Manufacturer: Elcometer
Part #: T456CN3S
Description: Designed to work seamlessly with our Dual FNF Elcometer 456 Separate Gauges.
Get it with an Elcometer test certificate and a set of calibration foils.
The foil sets match the scale range perfectly.
This probe is a must - have! Here are the top 3 core selling points:
• Wide Measurement Range: Ideal for measuring thick coatings on aluminium, copper, brass, and non - ferrous stainless steel.
• High Accuracy: With an accuracy of ±1 - 3% or ±2.0 mil (±50µm).
• Versatile Use: Great for aluminium truck bed spray on liners.
Specifications:
- Range: 0 - 500 mils (0 - 13mm)
- Accuracy*: ±1 - 3% or ±2.0 mil (±50µm)
- Resolution: 0.1 mil: 0 - 100 mils; 1mil: 100 - 500 mils (1µm: 0 - 2mm; 10µm: 2 - 13mm)
- Minimum convex surface radius - Flat Surface
- Minimum concave surface radius - Flat Surface
- Minimum headroom - 170mm (6.69')
- Minimum sample diameter: - 35mm (1.38')
Data Sheet
The Elcometer 456 Scale 3 Straight Non - Ferrous Substrate Probe is a great tool for those who need to measure thick coatings. It's perfect for people working with aluminium, copper, brass, or non - ferrous stainless steel, like those in the automotive industry who work on aluminium truck bed spray on liners. The probe has a measurement range from 0 to 500 mils (0 to 13mm), an accuracy of ±1 - 3% or ±2.0 mil (±50µm), and needs a minimum headroom of 170mm (6.69') and a minimum sample diameter of 35mm (1.38').
