Scale 2 Precision Foil Set (T99022255-2)
Manufacturer: Elcometer
Part #: T99022255-2
Description: (1, 2, 5, 10, 20, 40, 80, 120 mils)
Calibration foils or 'shims' are the most convenient way to create a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Core Selling Points:
- • Display both metric and imperial values for easy reference
- • Each foil has a unique serial number for full traceability
- • High precision with ±1% accuracy (±0.5µm for foils below 50µm)

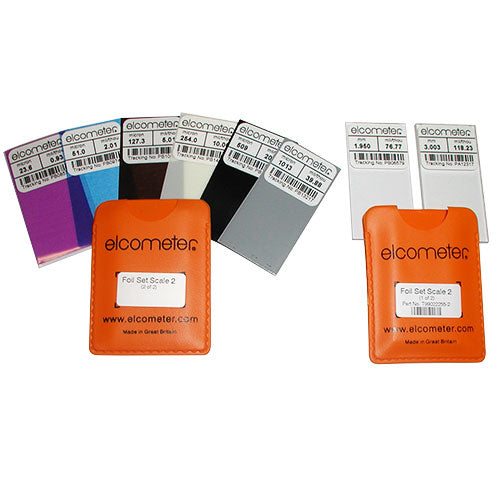

Please note: The range and color of foils may be different than what is pictured. Refer to the technical specifications tab to be sure of the range for each foil set.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 2 Precision Foil Set is perfect for those who need to accurately measure coating thickness. Whether you're in the manufacturing industry, doing quality control, or working on research projects, these foils will come in handy. You can use them to create a coating thickness standard on different materials and surfaces. The set includes foils with thicknesses of 1, 2, 5, 10, 20, 40, 80, and 120 mils. Each foil shows both metric and imperial values, and has a unique serial number for easy tracking. The foils have high precision, with an accuracy of ±1% (±0.5µm for foils below 50µm). They're available in thicknesses from 12.5µm to 25mm (0.5 to 980 mils), giving you a wide range of options to choose from.
