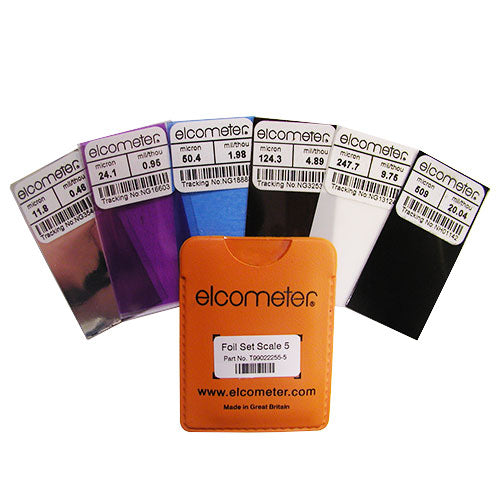

Scale 5 Precision Foil Set (T99022255 - 5)
Manufacturer: Elcometer
Part #: T99022255 - 5
Description: (0.5, 1, 2, 5, 10, 20 MILS)
Calibration foils or 'shims' are the most convenient way to create a coating thickness standard. Ideal for adjusting coating thickness gauge calibration for maximum accuracy.
Core Selling Points:
- • Dual Metric and Imperial Values: Easily read measurements in both systems.
- • Unique Serial Numbers: Ensure traceability for every foil.
- • High Precision: ±1% accuracy (±0.5µm for foils below 50µm) for reliable results.
Please note: The range and color of foils may differ from the picture. Check the technical specifications for each foil set's range.
Data Sheet
Additional Foil Sets:
| Scale | Un - Certified | Certified | Mils |
| Scale 1 | T99022255 - 1 | T99022255 - 1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255 - 2 | T99022255 - 2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255 - 3 | T99022255 - 3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255 - 4 | T99022255 - 4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255 - 5 | T99022255 - 5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255 - 6 | T99022255 - 6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255 - 7 | T99022255 - 7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255 - 8 | T99022255 - 8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 5 Precision Foil Set is great for anyone who needs to measure coating thickness accurately. It's useful in industries like manufacturing, automotive, and painting. Whether you're a professional technician or a DIY enthusiast, these foils can help you get the job done right. The foils come in various thicknesses from 0.5 to 20 mils, with dual metric and imperial values for easy reading. Each foil has a unique serial number for traceability, and they offer high precision with an accuracy of ±1% (±0.5µm for foils below 50µm).
