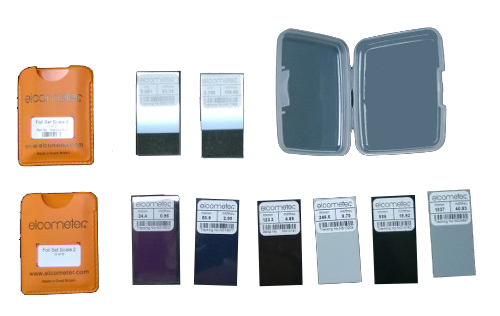

Elcometer Scale 8 Certified Precision Oversize (75 X 50mm) Foil Set
Manufacturer: Elcometer
Part #: T99022255-8C
Description: (1, 2, 5, 10, 20, 40, 80 (x2) MILS) Oversize (75 X 50mm)
Calibration foils or 'shims' are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Features:
- • Dual Metric and Imperial Values: Display both metric and imperial values on each foil for easy reference.
- • Unique Traceability: Each foil has a unique serial number, ensuring traceability and reliability.
- • High Precision: Precision foils offer ±1% accuracy (±0.5µm/0.02mil for foils below 50µm), guaranteeing accurate measurements.
Please note: The range and color of foils may be different than what is pictured. Refer to the technical specifications tab to be sure of the range for each foil set.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7(M3) | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8(2B) | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 8 Certified Precision Oversize Foil Set is a must - have for anyone dealing with coating thickness measurement. It's great for industries like automotive, manufacturing, and quality control. You can use it when calibrating coating thickness gauges on various substrate materials. The foils come in an oversize of 75 X 50mm. They display both metric and imperial values, and each foil has a unique serial number for easy tracking. With high - precision accuracy, you can trust it to give reliable results for your coating thickness measurement needs.
