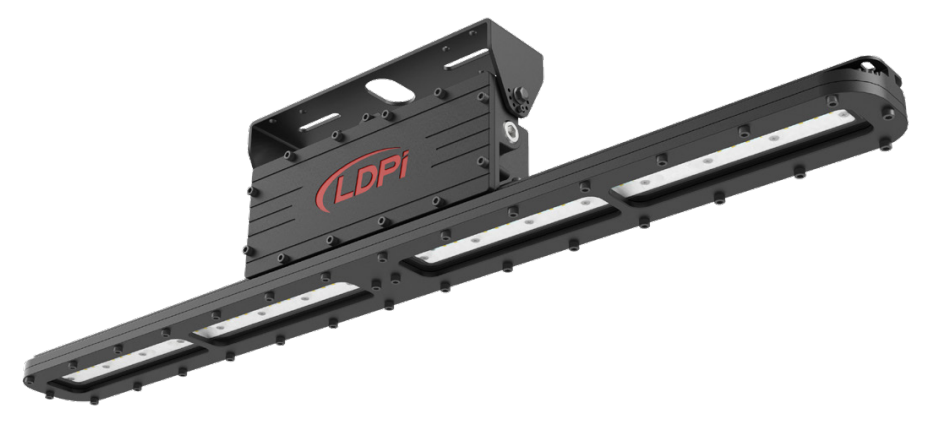

LDPI's LEXSG2: The Ultimate Class I Division 1 LED Fixture for Industrial Lighting
Manufacturer: LDPI
Part Number: LEXSG2-LX-V1-5-V110-D-PB
Description: Transform your industrial lighting with the LEXSG2! Designed for Class I Division 1 explosive environments, marine, and wet locations, this fixture is a game-changer.
• Ideal for paint or powder booths with Paint Spray listing and silicone-free gaskets
• High lumen output up to 150 Lm/W for bright illumination
• 5 Year Warranty for peace of mind
It's perfect for open face booths, directing light inward and downward.
Specifications:
- Length: 2' or 4'
- Single row Class I Division 1 5000K LED's with diffused optic
- Preinstalled yoke mount bracket
- Copper-free aluminum housing and yoke
- Silicone-free gaskets
- Powder coat black
- All exposed fasteners are stainless steel
- Thermal shock and impact resistant glass lens
- (3) 3/4” Hub locations
- Weights: 2Ft.-16 lbs. / 4Ft.-24 lbs
- 120-277VAC
- 10Kv surge protector built in, standard
- 3 Ft. 3-Wire whip standard, factory installed
- High lumen output up to 150 Lm/W
- Shock and vibration resistant
- 0-10V Dimming (Wire leads capped inside driver compartment)
- Mounting: Wall (Flood), Pole, Ceiling, Pendant, and Hanging
- 30° Yoke Adjustments (180° total)
- Light weight, compact design
- 5 Year Warranty
Performance:
The LEXSG2 LED fixture is great for industrial settings like paint or powder booths, as well as marine and wet locations. It's suitable for industrial facility managers, electricians, and anyone in need of reliable lighting in explosive or challenging environments. It comes in 2 - foot or 4 - foot lengths, with the 2 - foot weighing 16 lbs and the 4 - foot weighing 24 lbs. It offers high lumen output, is shock and vibration resistant, and has a 5 - year warranty.
