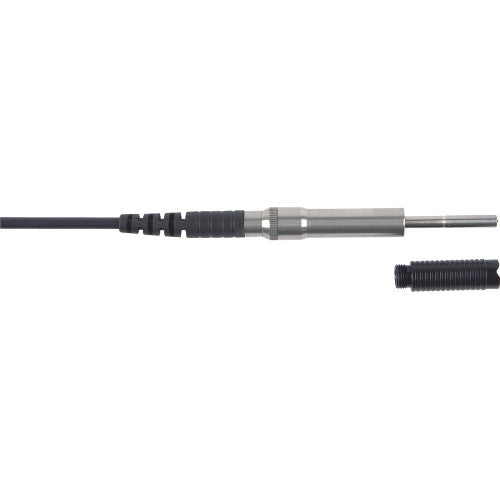

Elcometer 456 Mini Straight Non-Ferrous Substrate Probe - Scale 0.5: Unleash Precision Now!
Manufacturer: Elcometer
Part #: T456CNM3---A
Description:Discover the all-new Elcometer 456 Mini Straight Non-Ferrous Probe, perfectly paired with our Elcometer 456 Non-Ferrous and Ferrous/Non-Ferrous Separate Gauges. Don't miss out on this amazing tool!
• Ideal for edge, narrow pipe, wire, and small surface area coating measurements
• Compact 45mm length for easy handling
• High accuracy of ±1 - 3% or ±0.1 mil (±2.5µm)
Specifications:
- Range: 0 - 20 mils (0 - 500µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1 mils: 5 - 20 mils (0.1µm: 0 - 100µm; 1µm: 100 - 500µm)
- Minimum convex surface radius - 6mm (0.24')
- Minimum concave surface radius - 8.5mm (0.33')
- Minimum headroom - 6mm (0.24')
- Minimum sample diameter: 4mm (0.16')
*Whichever is greater
Data Sheet
This Elcometer 456 Mini Straight Non-Ferrous Substrate Probe is great for measuring coatings on edges, narrow pipes, wires, or small surfaces. It's perfect for professionals in the coating industry who need accurate measurements. With a length of 45mm, it's easy to handle. It has a measurement range of 0 - 20 mils (0 - 500µm) and high accuracy, making it a reliable tool for your work.
