Manufacturer: MS Powder
Part Number: 812151

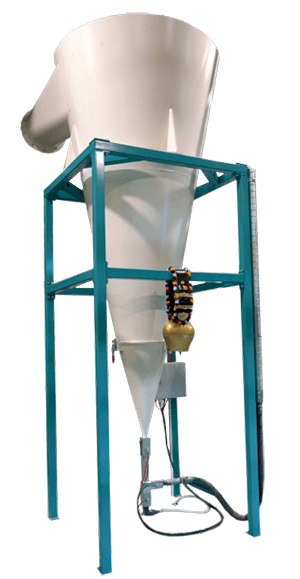

Description: Transform your powder coating process with our amazing Powder Recovery Unit Cyclone!
Here are the top 3 core selling points:
- • High Efficiency: Achieves an overall powder reclaim efficiency of up to 97%, saving you powder and money!
- • Easy Maintenance: Features a swing-out cone for easy access and maintenance, and clean-out access ports for routine checks.
- • Contamination-Free: With no sieve screen in the cyclone tail section, it eliminates the risk of powder contamination.
MS Cyclone Features:
- Cyclone capacity range: 4,000 to 28,000 m³/hr. (2,400 to 16,800 - CFM).
- Trapezoid conical design from top to bottom for efficient automatic cleaning and powder recovery.
- Powder feed return peristaltic pump system for reclaim or spray - to - waste operation.
- Integrated system powder vacuum cleaner.
This Powder Recovery Unit Cyclone is perfect for businesses involved in powder coating processes. Whether you're a small workshop or a large manufacturing plant, it can significantly improve your powder coating efficiency. It works by extracting the powder/air mixture from the powder booth through a specially designed duct, separating the powder from the air stream. The cyclone has a capacity range from 4,000 to 28,000 m³/hr, and its trapezoid conical design helps with efficient cleaning and powder recovery. It's easy to maintain, so you can focus on your work without worrying about complex upkeep.
