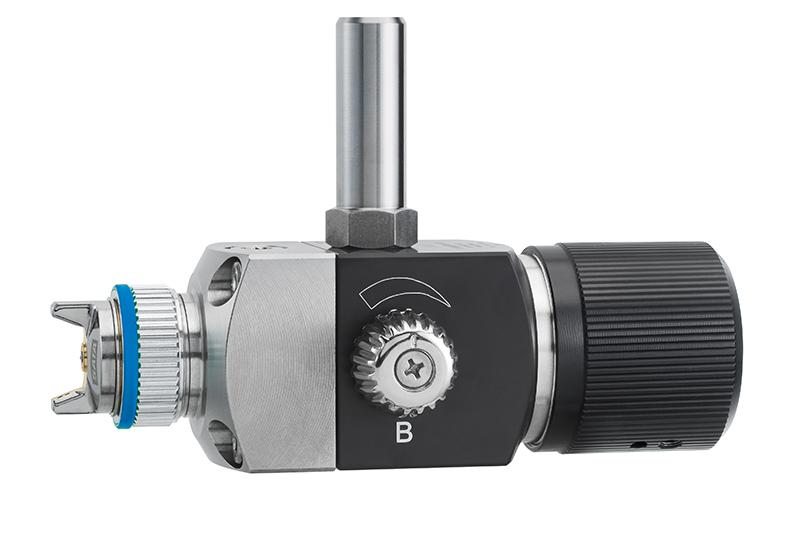

SATAminijet 1000 A HVLP: Revolutionize Your Painting Experience!
Manufacturer: SATA
Part #: 170XXX
Description: An internally controlled high - performance gun perfect for automatic painting machines and robots.
Top 3 Core Selling Points
- • Finest Atomization: Achieve detailed coatings with the finest atomization for a perfect finish.
- • Low Maintenance: Requires minimal upkeep and easy component replacement.
- • High Efficiency: Homogeneous spray fan and HVLP technology for maximum application efficiency.
HVLP: Extra Economical - HVLP paint spray guns achieve particularly high transfer rates with their low - pressure technology.
| Technical Data: | HVLP |
| Inlet Pressure: | 36 - 45 psi |
| Air Consumption: | 6 CFM |
| Air Pressure Min. | 45 psi |
| Fluid Pressure Max. | 145 psi |
| Fluid Temp Max. | 176 F |
Parts and Accessories:
| Part No. | Description |
| 1594 | Teflon Seal |
| 3418 | Washer, 3.7 DIN 125 Brass |
| 3574 | Compression Spring |
| 11544 | Compression Spring For Needle |
| 54221 | Spindle Complete |
| 64071 | Seal Retainer |
| 64105 | Control Piston |
| 64147 | Washer |
| 64154 | Hollow Screw |
| 64709 | Sleeve |
| 64766 | Spacer |
| 64808 | Spring Compression |
| 64857 | Seal Retainer, Complete |
| 64865 | Control Piston, Complete |
| 64873 | End Cap, Complete |
| 64881 | Control Cap, Complete |
| 70789 | O - Ring 5x2 |
| 73783 | Hex Socket Screw |
| 74179 | Inner Material Seal |
| 74690 | Cylindrical Screw |
| 127399 | Air Dist. Ring |
| 133934 | O - Ring 11x1 |
| 140574 | Control Knob w/ Screw |
| 144618 | Mounting Post 15mm |
| 170787 | Seal Retainer, Cpl |
| 203588 | Nozzle Head Cpl |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
The SATAminijet 1000 A HVLP is ideal for professional painters and those working with automatic painting machines or robots. It's great for painting small surfaces and creating complex detailed coatings. With an inlet pressure of 36 - 45 psi and air consumption of 6 CFM, it's a reliable tool for your painting needs. Whether you're working on thin layers or need the finest atomization for detailed work, this gun has got you covered.
