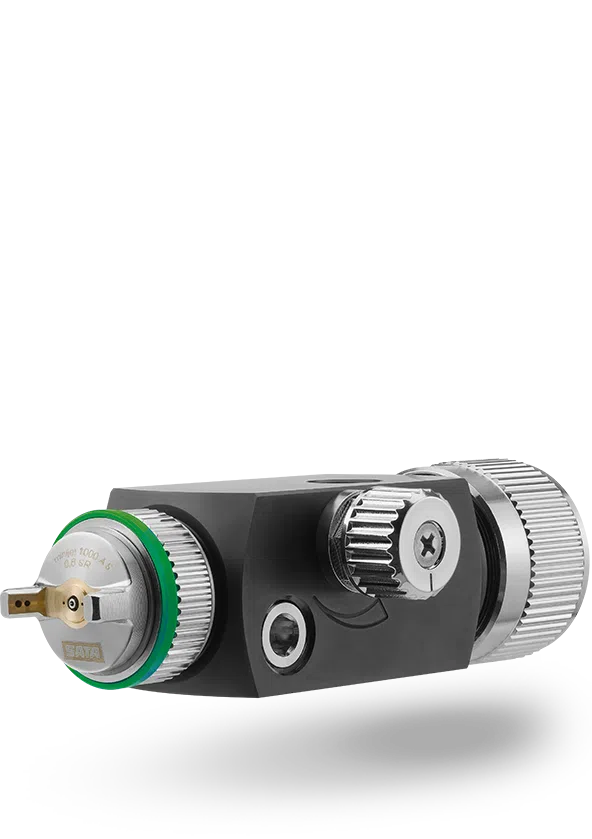

SATAminijet 1000 A S HVLP - Revolutionize Your Painting Process!
Manufacturer: SATA
Part #: 149XXX
Description: An automatic, externally controlled marking gun perfect for automatic painting machines and painting robots. External control allows for high cycle frequencies.
Top 3 Core Selling Points
- • High - frequency operation for efficient marking tasks
- • Stepless fan geometry regulation for precise coating
- • Low maintenance and easy component replacement
HVLP: Extra Economical - HVLP paint spray guns achieve particularly high transfer rates with their low - pressure technology.
Technical Data:
- Atomization Air Pressure: 72 - 80 psi
- Air Consumption: 7 CFM
- Air Pressure Min: 43 psi
- Air Pressure Max: 150 psi
- Material Pressure Max: 75 psi
- Material Temp. Max: 175 F
Parts and Accessories:
| Part No. | Description |
| 1503 | Countersunk Screw |
| 1933 | Teflon Sealing |
| 2188 | Spindle, Complete |
| 3418 | Washer, 3.7 DIN 125, Brass |
| 3574 | Compression Spring |
| 3582 | Packing Screw |
| 20297 | Compression Spring |
| 22418 | Teflon Sleeve |
| 24349 | Backing Plate |
| 40253 | Regulation Cap |
| 45385 | Hex. Nut M9X1 |
| 57976 | Distance Sleeve |
| 65557 | Regulation Knob |
| 67116 | Locking Screw |
| 127399 | Air Dist. Ring |
| 144618 | Fixing Bolt |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
The SATAminijet 1000 A S HVLP is designed for automatic painting machines and painting robots. It's great for industrial painters and those working on projects that require high - frequency marking and precise coating. This gun has an atomization air pressure between 72 - 80 psi and an air consumption of 7 CFM. With its ability to handle high - cycle frequency tasks, it's ideal for thin - layer and detail coating jobs.
