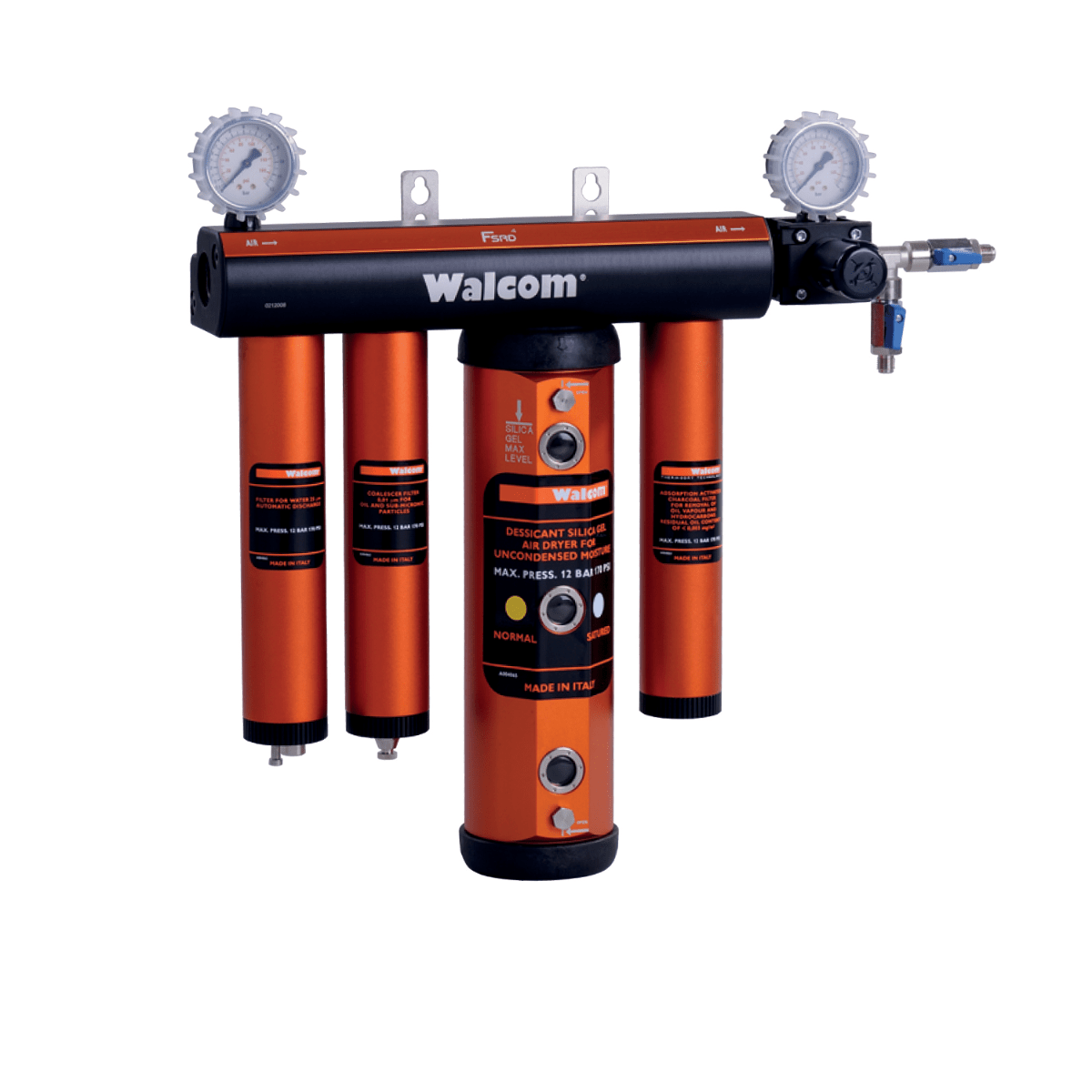

Walcom Four Stage Compressed Air Filtration System - FSRD 4
Manufacturer: Walcom
Part #: 60138/11
Description: Transform your painting booth experience with this modular filter system!
• 4-Stage Filtration: Comprehensive purification for top - notch air quality.
• High - Precision Filtering: Filters air at 5µ and oil at 0.01µ for pristine results.
• Breathable Air Output: Eliminates impurities, with max oil residue < 0.0003 mg/m3.
- Pre - filtering element in synthetic fibre for the elimination of condensation. Automatic discharge.
- Oil - separating filter for the elimination of residual pollutants. Manual drainage tap.
- Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.
- Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m3
Specifications:
- Pressure adjuster: Membrane system and automatic decompression
- Air inlet: F 3/4'
- Air outlet: Nr. 2 from M 1/4'
- Filtering power: Air 5µ - oil 0.01µ
- Working pressure: 12 bar
- Air consumption: 1200 l/min to 6 bar
- Weight: 11 Kg
Parts and Accessories:
- Water Filter
- Oil Filter
- Active Charcoal Filter
- Thermo Hygrometer
The Walcom Thermodry FSRD 4 is perfect for painting booths. It's designed for professionals in the painting industry who need high - quality compressed air. This system is 11 Kg in weight. It has a pressure adjuster with a membrane system and automatic decompression, an F 3/4' air inlet, and two M 1/4' air outlets. With 4 - stage filtration, it ensures clean and breathable air for your work environment.
