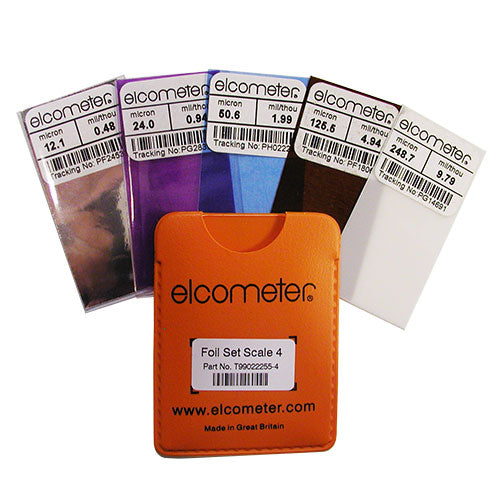

Elcometer Scale 4 Precision Foil Set - Your Key to Accurate Coating Thickness Measurement (T99022255-4)
Manufacturer: Elcometer
Part #: T99022255-4
Description: (0.5, 1, 2, 5, 10 MILS)
Calibration foils are essential for creating a coating thickness standard. Use them to adjust your coating thickness gauge for maximum accuracy!
Top 3 Selling Points:
- • Dual Metric and Imperial Values: No more unit conversion hassle!
- • Unique Serial Numbers: Ensure traceability and quality control.
- • High Precision: ±1% accuracy (±0.5µm for foils below 50µm)
Note: Foil range and color may vary from the picture. Check the technical specs for details.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
The Elcometer Scale 4 Precision Foil Set is perfect for anyone who needs to measure coating thickness accurately. Whether you're a professional in the manufacturing industry, a quality control inspector, or a DIY enthusiast working on home projects, these foils will help you get the job done right. Use them on various substrate materials to create a reliable coating thickness standard. The foils come in thicknesses from 12.5µm to 25mm (0.5 to 980mils), and each one has both metric and imperial values printed on it for easy reading. With unique serial numbers for traceability and high precision, you can trust these foils for all your coating thickness measurement needs.
