Elcometer Scale 6 Certified Precision Foil Set (T99022255-6C) - Must-Have for Accurate Calibration!
Manufacturer: Elcometer
Part #: T99022255-6C
Description: (40, 80, 200, 370, 590, 980 MILS)
Calibration foils are a convenient way to create a coating thickness standard. Ideal for adjusting coating thickness gauges for maximum accuracy.
Top 3 Features:
- • Metric and Imperial values on each foil for easy reference
- • Each foil has a unique serial number for traceability
- • High precision with ±1% accuracy (±0.5µm for foils below 50µm)

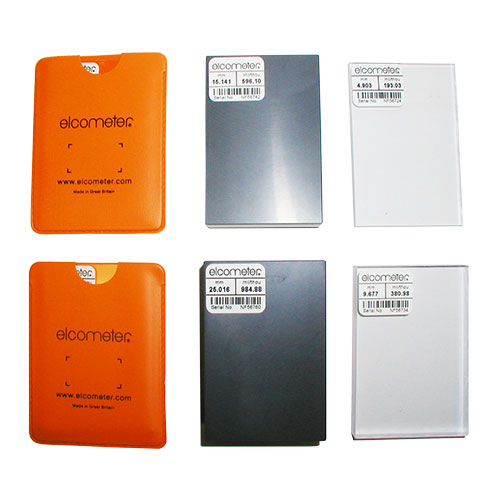

Note: Foil range and color may vary from the picture. Check the technical specs for details.
Data Sheet
Additional Foil Sets:
| Scale | Un-Certified | Certified | Mils |
| Scale 1 | T99022255-1 | T99022255-1C | 1.0, 2.0, 5.0, 10, 20, 40 |
| Scale 2 | T99022255-2 | T99022255-2C | 1.0, 2.0, 5.0, 10, 20, 40, 80, 120 |
| Scale 3 | T99022255-3 | T99022255-3C | 10, 20, 40, 80, 160, 310 |
| Scale 4 | T99022255-4 | T99022255-4C | 0.5, 1.0, 2.0, 5.0, 10 |
| Scale 5 | T99022255-5 | T99022255-5C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 6 | T99022255-6 | T99022255-6C | 40, 80, 200, 370, 590, 980 |
| Scale 7 | T99022255-7 | T99022255-7C | 0.5, 1.0, 2.0, 5.0, 10, 20 |
| Scale 8 | T99022255-8 | T99022255-8C | 1.0, 2.0, 5.0, 10, 20, 40, 80 (x2) |
This Elcometer Scale 6 Certified Precision Foil Set is perfect for those who need to calibrate coating thickness gauges. Whether you're in a factory, a lab, or on a construction site, these foils can help you get accurate measurements. Target users include technicians, quality control specialists, and engineers. The foils come in a set with specific thicknesses (40, 80, 200, 370, 590, 980 MILS) and display both metric and imperial values. Each foil has a unique serial number for easy tracking, and they offer high precision with an accuracy of ±1% (±0.5µm for foils below 50µm).
