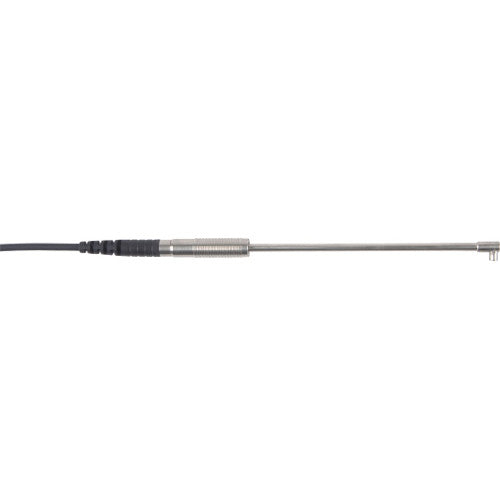

Elcometer 456 Mini 90° Non-Ferrous Substrate Probe - Scale 0.5, 150mm - Grab Yours Now!
Manufacturer: Elcometer
Part #: T456CNM3R90C
Description: Discover the all-new Elcometer 456 Mini 90 Degree Non-Ferrous Probe, perfectly paired with our Elcometer 456 Separate Gauges.
• Ideal for hard-to-reach areas: Measure pipes and boreholes with ease.
• High accuracy: ±1 - 3% or ±0.1 mil (±2.5µm).
• Compact design: Mini measuring head for tight spaces.
Specifications:
- Length 150mm (5.90')
- Range: 0 - 20 mils (0 - 500µm)
- Accuracy*: ±1 - 3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0 - 5 mils; 0.1 mils: 5 - 20 mils (0.1µm: 0 - 100µm; 1µm: 100 - 500µm)
- Minimum convex surface radius - 6mm (0.24')
- Minimum concave surface radius - 8.5mm (0.33')
- Minimum headroom - 16mm (0.63') Width: 7mm (0.28')
- Minimum sample diameter: 4mm (0.16')
*Whichever is greater
Data Sheet
This Elcometer 456 Mini 90° Non-Ferrous Substrate Probe is great for professionals who need to measure hard-to-reach areas like the walls of pipes or boreholes. With a length of 150mm, it has a mini measuring head, making it perfect for tight spaces. It can measure in the range of 0 - 20 mils (0 - 500µm) with high accuracy, so you can trust the results. Whether you're in construction, engineering, or any field that requires precise non-ferrous measurements, this probe is a must - have.
