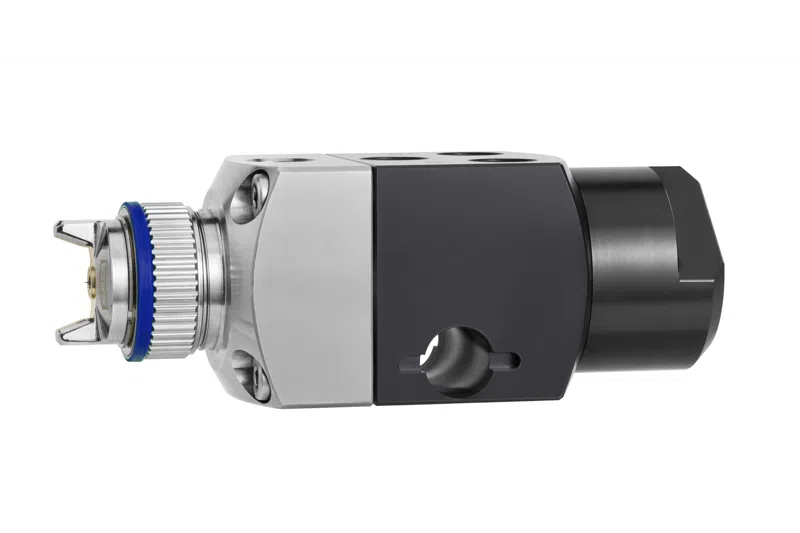

SATAminijet 1000 ROB; RP - High-Performance Automatic Painting Gun
Manufacturer: SATA
Part #: 220XXX
Description: Discover the ultimate solution for automatic painting! This fully automatic, externally controlled high-performance gun is a game-changer for automatic painting machines and robots. • Ideal for small surfaces and complex detailed coatings • Can be easily integrated into existing systems • Offers low maintenance and easy component replacement. RP technology ensures extra fast working speed with optimized high-pressure and low overspray.
Product Benefits
- Can be integrated into existing control and application systems
- Fully automatic, continuous adjustment of fan geometry via external control
- Circulation mode
- Process reliability through self-adjusting sealing elements in the air and material area
- Low maintenance requirements, easy replacement of components
- Finest atomisation for detail coatings
- Ideal for thin layers
- Homogeneous spray fan with maximum application efficiency through proven RP or HVLP technology
RP: Extra Fast - RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
| Technical Data: | RP |
| Inlet Pressure: | 36 - 43 psi |
| Air Consumption: | 7 CFM |
| Air Pressure Min. | 43 psi |
| Fluid Pressure Max. | 145 psi |
| Fluid Temp Max. | 176 F |
Parts and Accessories:
| Part No. | Description |
| 14183 | Tool Kit |
| 64071 | Seal Retainer, Cpl |
| 64147 | Washer |
| 64709 | Sleeve |
| 64808 | Compression Spring |
| 43091 | Control Piston |
| 43109 | Closing Cap |
| 74690 | Cylindrical Screw |
| 170787 | Seal Retainer, Cpl |
| 127399 | Air Distribution Ring |
| 203588 | Nozzle Head |
| 185611 | Nozzle Head - Quick Change Mount |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
The SATAminijet 1000 ROB; RP is perfect for professionals in the painting industry who work with automatic painting machines and robots. It's great for painting small surfaces and adding complex details. With an inlet pressure of 36 - 43 psi and an air consumption of 7 CFM, it offers a balance of power and efficiency. Whether you're in a large - scale factory or a small workshop, this gun will help you achieve high - quality painting results.
