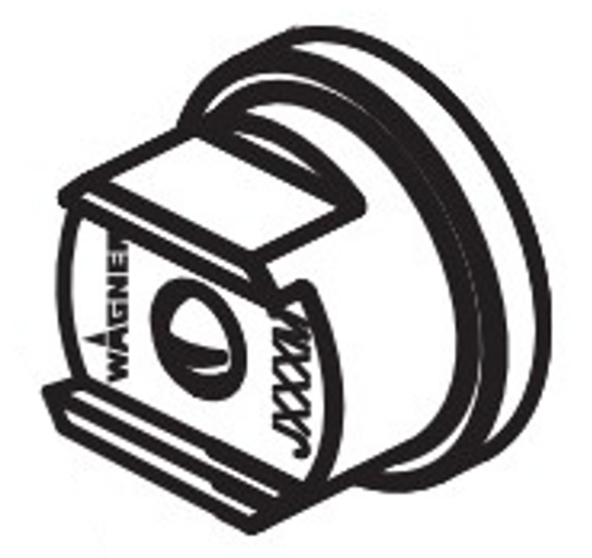

Wagner Airless Flat Jet Nozzle Standard Tip

Wagner's Premium Airless Flat Jet Nozzle Standard Tip

Manufacturer: Wagner

Part #: See Table

Description: Elevate your painting projects with Wagner's Airless Flat Jet Nozzle Standard Tip!

Applications:

• Orifice sizes 0.007-0.009: Natural lacquer, Clear lacquers, Oils
• Orifice sizes 0.011: Synthetic resin lacquers, PVC lacquers
• Orifice sizes 0.013: Lacquers base coat, Zinc chromate primer, Primer filler
• Orifice sizes 0.015: Filler, Spraying plaster, Rust proofing paints
• Orifice sizes 0.017-0.019: Spraying plaster, Rust proofing paints, Red lead, Latex paints
• Orifice sizes 0.021: Mica paints, Zinc rich paints, Emulsions
• Orifice sizes 0.023: Rust proofing paints
• Orifice sizes 0.025-0.039: Emulsion, Emulsion paint, Glue paints, Fill color
• Orifice sizes 0.043-0.052: Large-surface coating

Part #	Nozzle #	Spray Angle	Orifice Size inch;mm	Jet width mm;inch
90407	407	40 °	0.007; 0.18	163; 6.42
90507	507	50 °	0.007; 0.18	190; 7.48
90209	209	20 °	0.009; 0.23	148; 5.83
90309	309	30 °	0.009; 0.23	158; 6.22
90409	409	40 °	0.009; 0.23	198; 7.79
90509	509	50 °	0.009; 0.23	215; 8.46
90609	609	60 °	0.009; 0.23	225; 8.85
90111	111	10 °	0.011; 0.28	87; 3.42
90211	211	20 °	0.011; 0.28	93; 3.66
90311	311	30 °	0.011; 0.28	127; 5.0
90411	411	40 °	0.011; 0.28	210; 8.23
90511	511	50 °	0.011; 0.28	225; 8.85
90611	611	60 °	0.011; 0.28	270; 10.63
90113	113	10 °	0.013; 0.33	103; 4.05
90213	213	20 °	0.013; 0.33	107; 4.21
90313	313	30 °	0.013; 0.33	142; 5.59
90413	413	40 °	0.013; 0.33	207; 8.15
90513	513	50 °	0.013; 0.33	255; 10.04
90613	613	60 °	0.013; 0.33	282; 11.10
90813	813	80 °	0.013; 0.33	375; 14.76
90115	115	10 °	0.015; 0.38	98; 3.86
90215	215	20 °	0.015; 0.38	100; 3.94
90315	315	30 °	0.015; 0.38	162; 6.38
90415	415	40 °	0.015; 0.38	202; 7.95
90515	515	50 °	0.015; 0.38	252; 9.92
90615	615	60 °	0.015; 0.38	268; 10.55
90715	715	70 °	0.015; 0.38	295; 11.61
90815	815	80 °	0.015; 0.38	395; 15.55
90217	217	20 °	0.017; 0.43	117; 4.60
90317	317	30 °	0.017; 0.43	153; 6.02
90417	417	40 °	0.017; 0.43	190; 7.48
90517	517	50 °	0.017; 0.43	235; 9.25
90617	617	60 °	0.017; 0.43	283; 11.14
90717	717	70 °	0.017; 0.43	342; 13.46
90219	219	20 °	0.019; 0.48	147; 5.79
90319	319	30 °	0.019; 0.48	168; 6.61
90419	419	40 °	0.019; 0.48	192; 7.56
90519	519	50 °	0.019; 0.48	272; 10.71
90619	619	60 °	0.019; 0.48	315; 12.40
90719	719	70 °	0.019; 0.48	330; 12.99
90819	819	80 °	0.019; 0.48	402; 15.83
90221	221	20 °	0.021; 0.53	148; 5.83
90421	421	40 °	0.021; 0.53	183; 7.20
90521	521	50 °	0.021; 0.53	252; 9.92
90621	621	60 °	0.021; 0.53	313; 12.32
90821	821	80 °	0.021; 0.53	380; 14.96
90223	223	20 °	0.023; 0.58	130; 5.12
90423	423	40 °	0.023; 0.58	185; 7.28
90523	523	50 °	0.023; 0.58	253; 9.96
90623	623	60 °	0.023; 0.58	298; 11.73
90723	723	70 °	0.023; 0.58	340; 13.38
90823	823	80 °	0.023; 0.58	355; 13.98
90225	225	20 °	0.025; 0.64	133; 5.24
90425	425	40 °	0.025; 0.64	198; 7.79
90525	525	50 °	0.025; 0.64	250; 9.84
90625	625	60 °	0.025; 0.64	265; 10.43
90825	825	80 °	0.025; 0.64	360; 14.17
90227	227	20 °	0.027; 0.69	143; 5.63
90427	427	40 °	0.027; 0.69	222; 8.74
90527	527	50 °	0.027; 0.69	233; 9.17
90627	627	60 °	0.027; 0.69	270; 10.93
90827	827	80 °	0.027; 0.69	353; 13.90
90629	629	60 °	0.029; 0.75	288; 11.34
90231	231	20 °	0.031; 0.79	130; 5.12
90431	431	40 °	0.031; 0.79	220; 8.66
90531	531	50 °	0.031; 0.79	223; 8.78
90631	631	60 °	0.031; 0.79	273; 10.75
90433	433	40 °	0.033; 0.84	220; 8.66
90235	235	20 °	0.035; 0.90	120; 4.72
90435	435	40 °	0.035; 0.90	220; 8.66
90535	535	50 °	0.035; 0.90	270; 10.93
90635	635	60 °	0.035; 0.90	310; 12.20
90839	839	80 °	0.039/ 0.99	480; 18.90
90243	243	20 °	0.043; 1.10	165; 6.50
90543	543	50 °	0.043; 1.10	260; 10.24
90552	552	50 °	0.052; 1.30	280; 11.02

• Wide Range of Applications: Suitable for various paints and coatings
• Multiple Spray Angles: Choose the perfect angle for your project
• Precise Orifice Sizes: Ensure accurate and efficient spraying

This Wagner Airless Flat Jet Nozzle Standard Tip is a must - have for anyone involved in painting or coating projects. Whether you're a professional painter or a DIY enthusiast, it can meet your needs. Use it for small - scale jobs like applying natural lacquer on furniture or large - surface coating of walls. It comes with different orifice sizes from 0.007 - 0.052 inches and various spray angles from 10° to 80°. The jet width ranges from around 87mm to 480mm, allowing you to choose the most suitable combination for your specific task. Get yours and transform your painting experience!
