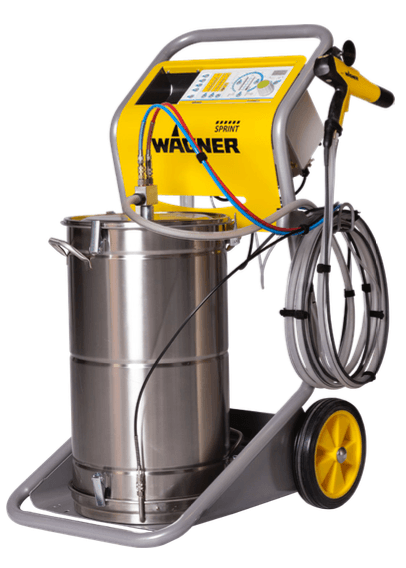

Wagner Sprint Airfluid XE - Hopper Feed (Hopper Not Included)
Manufacturer: Wagner
Part Number: 2355404
Description: Sprint Airfluid XE - Hopper Feed (Hopper Not Included)
• Quick and Easy Color Changes: The fixation of the suction tube allows for rapid color transitions.
• Compact and Versatile: Mount small wheels to use and position the manual system in tight spaces.
• High Flexibility: Unique Cascade characteristic line setting and TRIBO compatibility offer flexibility for any powder.
Parts & Accessories
2331976 - Wagner Spare Parts Starter Pkg. X1 Ext.
2320488 - Wagner X-1 Powder Gun Wedges
2322529 - Wagner Electrode Holder X1F
2322493 - Wagner Round Spray Nozzle Retrofit Package
264224 - Wagner 25 Liter Hopper for SPRINT Powder Coating Systems
264268 - Wagner 60 Liter Hopper
265401 - Wagner Sprint Fluid Crown
2303279 - Wagner Sprint, Guide Bushing for Injector Bracket
2305421 - Wagner Sprint, Injector Bracket, Nut
2322761 - Wagner PEM-X1 Hose Connector Assy D10-D12
2324123 - Wagner PEM-X1 SP Powder Tube
2324341 - Wagner PEM-X1 SP O-Ring Set
2307107 - Wagner Piston Vibrator, Complete
POL-251 - Wagner, 6mm x 4mm Black Tubing (replaces 9982079 sold by the foot - need 5'. Cut to match 1.3m/4'4')
2334272 - Pressure regulator for Wagner Sprint and Sprint X control units, preset to 6 bar (87 psi)
241466 - Outer Nut / Cap Nut
INPUT VOLTAGE
85 – 250 V
INPUT POWER
40 W
INPUT FREQUENCY
50 – 60 Hz
PROTECTION CLASS
IP 64
AIR INLET PRESSURE
0.6 – 0.8 MPa, 6.0 – 8.0 bar, 87 – 116 PSI
AIR INLET CONNECTION
G 1/4‘‘ i
EXHAUST AIR FLOW
0.05 – 20.0 Nm³/h
OPERATING TEMPERATURE
5 – 45 °C, 41.0 – 113.0 °F
WEIGHT
38.0 kg, 83.8 lb
BROCHURE
POWDER COATING SYSTEMS
CUT SHEET
OPERATING MANUAL
The Wagner Sprint Airfluid XE - Hopper Feed is perfect for professionals and DIY enthusiasts involved in powder coating projects. Whether you're working on small home projects or large industrial jobs, this unit can handle it. It's designed to be used in workshops or industrial settings where powder coating is required. With a weight of 38.0 kg (83.8 lb), it's sturdy yet manageable. The input voltage ranges from 85 - 250 V, making it suitable for various power sources. The operating temperature range of 5 - 45 °C (41.0 - 113.0 °F) ensures it can work in different environments.
